Spark holland 920 endurance autosampler
Spark Holland Model 920 Endurance Autosampler
Spark Fraction Collector, Model # 920

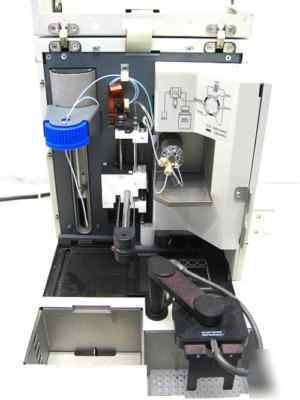

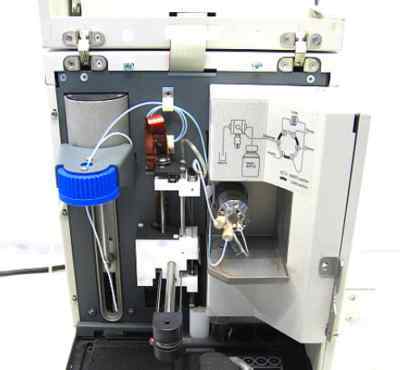

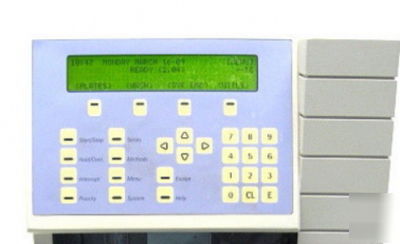

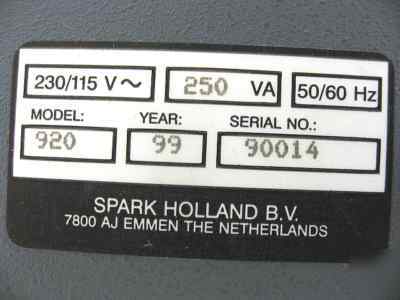

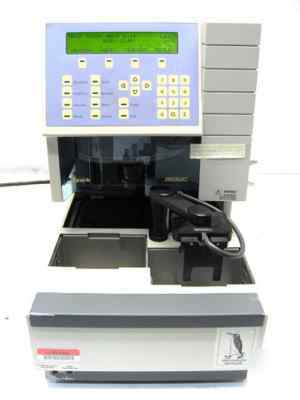

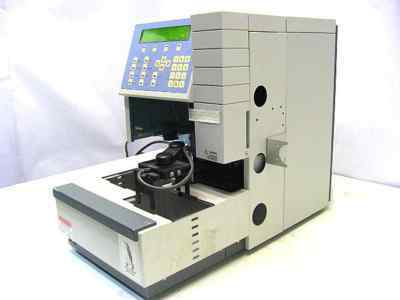

Up for sale a very nice working Spark Holland Model 920 Endurance Autosampler.!
The Endurance is an autosampler that offer a wide variety of possibilities for HPLC. It is suitable for use with various types of well plates by various manufacturers. The Endurance is capable of executing full loop injections, partial filled loop injections and L pickup. It accommodates for the use of several different types of syringes from 100 L to 10 mL. The Endurance has been designed for routine analysis and method development.
What is the difference between the Autosamplers with the single 25-pin serial connector and the dual 9-pin serial connectors?
Spark Holland replied with: The Endurance (model 920) was equipped with a 25 pins serial connector in the past. Due to modifications and implementation into our Symbiosis systems the serial connection has been changed from single 25-pin to dual 9-pin multilink.
The normal serial communication (RS-232) didn t change. So in the case of 25-pin connection it is just a 1:1 pinning (no crossed cable) The pins which are important to establish a regular serial communication are:
Dispenser Syringe Volume: 500 L
One Single 25-Pin RS-232 Communication Port .
This all the info i could gather about this machine from the manual which i included and on the web.
This came from a working lab, and in very good conditions
Please check & enlarge photos for details.
These are the actual photos of the item you will get.
You will get what you see in the pictures
This machine came from working place
For more info and manuals please refer to:-
Spark Holland web-site:- http:// /
User manual:- http:// /info/Spark_Holland_Endurance_Manual.pdf
If you have any quetions or need more photos please contact me and i will try to answer them to the best i know.
Returen are accepted only if machine is DOA, or not as described.
Thank you for choosing Cealkoo.!
