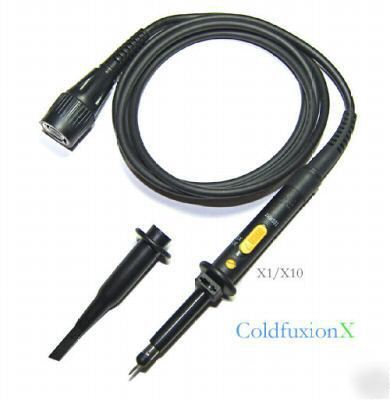

Top quality 100MHZ oscilloscope scope clip probe hp tek
Brand New Top Quality 100MHz Oscilloscope Clip Probe
Good for most HP and Tektronix scope
Ideal for Eletronics Professional, hobbies, electronics technician, student major in electronics.
This is a brand new Top Quality 100MHz Oscilloscope probe.
Two range: 1x and x10 for Attenuation:1x/10x Input_Resistance:1M/10M Inout_Capacitance:50pF/15pF Bandwidth:100MHz System_RiseTime:3.5ns Compensation:10-60pF Maximum_Voltage:600V
* Stable response throughout bandwidth for accurate measurements.
* Protective shielding eliminates distortion from body induction.
* Low noise cable for signal clarity.
* Rugged, durable construction that withstands tension.
* Light weight and compact design for easy access to high density circuitry.
