Via bravo mri network analizer nmr/mri (0.1-1.5 t)


These items are specifically tailored for use in non-magnetic MRI and NMR environments. They will of course operate in other applications and environments and will provide the same functions and results.
NO RETURNS CAN BE ACCEPTED EXCEPT UNDER THE CONDITIONS OF THE WARRANTY!

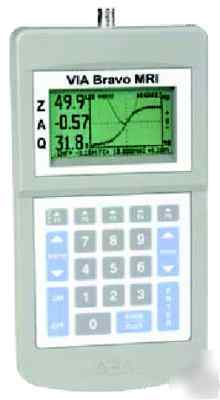

The VIA Bravo MRI is a Network Analyzer that accurately measures impedances from 2 to 2000 Ohms, resistance, phase angle, X, Q, return loss, and SWR. The Bravo MRI can simultaneously provide graphical display for any two measurement parameters. The frequency sweep is plotted in the X axis and independent left and right Y axis scales are user selectable. The Bravo s portability and ability to function in close proximity to magnetic fields make it the ideal test instrument for installing and servicing MRI systems.
The Bravo products come with Bravo PC Vision software. This software permits remote control operation of the Bravo MRI to upload test results to a PC or laptop, view the VIA or Smith Charts in full color, store and print complete analyzer documentation. While the Bravo s LCD can support displaying two parameters, PC Vision can display one or all the testing parameters at once. The Bravo MRI will save time, reduce capital expenditures, and reduce costs typically associated with the installation and servicing of MRI Systems.
VIA Bravo MRI Network Analyzer For Testing MRI Coils 0.1 - 1.5 T
Frequency range: MRI - 100KHz to 70MHz (0.1 to 1.5T)
Tuning Resolution: < 0.02% of Center Frequency
Measurement Speed: ~ 1 sweeps/second
Freq. Display Width: 0 -12.8MHz/80 data pts/Large Readout Mode
0 16MHz/100 data pts/Small Readout Mode
Impedance Range: 0 to 2000 Ohms
Impedance Scales: 0 to 100 Ohms Minimum 0 to 2000 Ohms Maximum
Phase Angle Scales: 15 to 180 Degrees
Harmonic & Spurious: >30 dB below fundamental
Output Power: ~ -15 dBm @ 50 Ohms
Power Requirements: 13.8 to 18 VDC @ 400mA Min.
Input Connectors: BNC for Bravo MRI N Type for all other models
Display: 64 x 128 pixels backlit LCD
Non Volatile Memory: Slots 1 16 Instrument presets
Dimensions: 8.5x4.3x2.25 (215x110x57mm)
Weight: 20 oz (640g) without batteries

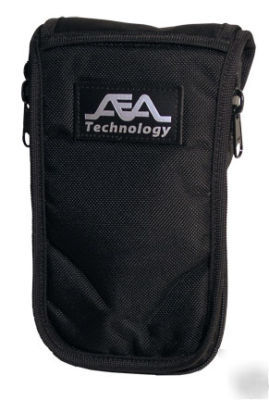

Kit Carrying Case, Soft Part# 6015-1002 $70.00
Large reinforced soft sided carrying case with product
wells in closed foam insert and shoulder strap
Kit Carrying Case, Hard Part# 6015-1003 $140.00
Large hard-shell carrying case with product wells in
closed cell foam block. Case has gasket seal with
handle, padlock holes and pressure vent.
Calibration Certifications Part# 6000-0402 - $100.00
