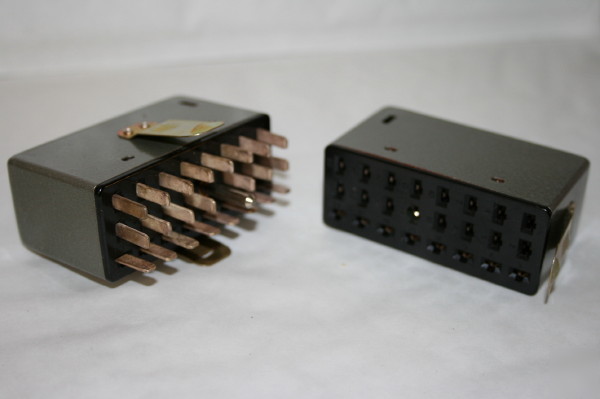

24 pin multi way plug & socket heavy duty FD2E3
This type is an in line pair, 24 way cable mount 'free' or running male, together with a matching cable mount 'free' or running female, both halves have a galvonised pressed steel heavy duty housing.
Eight of the connections are at a 90 degree angle to the other sixteen, and one of the pins doubles as a locating pin, thus avoiding an incorrect connection.
Dimensions of the housings are approx 67mm x 37mm x 27mm and the cable entries are about 17mm.
