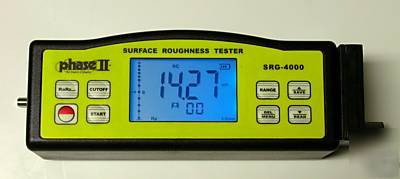

Handheld,portable surface roughness tester SRG4000
SRG4000 is a very user-friendly roughness tester, profilometer.
Can be used in a testing lab or shop floor.
Great for flat surface, slightly curved surface and cylinders.
Meet roughness standards: ISO / DIN / JIS / ANSI
4 different roughness parameters
Roughness parameters: Ra, Rz, Rq (Rq equals to old parameter: RMS), Rt
Measuring range: Ra, Rq: 0.005 m up to 16 m
Pick Up measuring range: +/- 80 m
Display resolution: +/-20 m = 0.001 m
Sensor Specifications: 5 m Diamond Tip Stylus, 90
Cut-off lengths: 0.25mm/0.8mm/2.5mm
Tracing length: 1.3mm 17.5mm
Filter: RC, PC-RC, GUASSIAN, D-P
Dimensions: 139mm 56mm 48mm

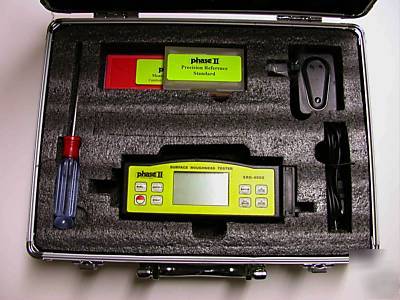

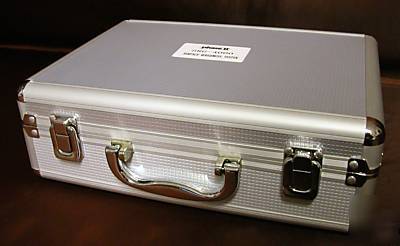

Standard stylus with protection case
Surface roughness standard (patch)
Support ( for adjusting height of one end of tester )
