Italy motor electrolytic capacitor 450V 31.5UF *quality
This is a high Quality Electrolytic Capactor (Wire) 31.5UF - 450Vac
* Used as Universal MOTOR STARTER capacitor/condenser for general engines
* Manufactured by COMAR CONDENSATORI (Made in ITALY)!!!!!!!!!
* Rated Voltage: 450Vac (450Volt), 31.5UF
* Rated Frequency: 50 ~ 60 Hz
* Capacitance Tolerance: +5%
* Working Temperature: -25 C / +85 C
* Operating Class: 400V - B 1000h (HPFNT), 450V - C 3000h (HPFPU)
* Climatic Category: 25/81/21
* Protection Degree: IP00 (IP54 option)
* Loss Factor: < 5 x 10^-6 (V=Vn T=+20 C
* Test Voltage between terminals: 2Vn x 2sec
* Test Voltage between terminals and case: 2Vn x 2sec
* Reference Standard: EN60252 - VDE560-8
* Approvals: EN60252-1 (1,5 - 45UF), EN60252 (1,5 - 45UF), IEC252 (1,5 - 45UF), file: E214047
* Dimension of Capacitor: 45MM diameter, 94MM height
Note: The capacitors manufactured by COMAR CONDENSATORI (ITALY) are made with self-heating metallized polypropylene film dielectric. The construction of these capacitors are achieved thanks to the use of advanced machines which ensure very high quality and high performance of the product.
All the products manufactured by COMAR have CE marking, and they are responding to the most important international standards and they have achieved homologations like:

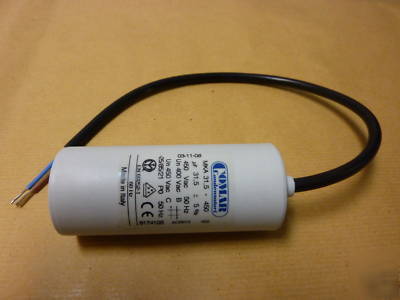

Hope the picture can clearly convince you that you will be getting this Genuine COMAR capacitor from ITALY!!
Definitely a high quality product coming at a SUPER good price here.
