Motorola CP125 vhf 5 watt 4CH business two way radio

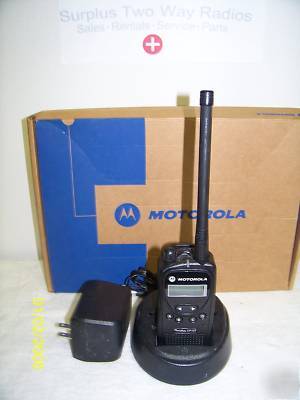

1 Motorola CP125 VHF band 2-5 watt radio 136-174mhz (MDL#AAH49KDF8AA1AC)
Items have been tested and work with each other.
Items are in used condition and show signs of normal wear. No cracks or broken parts just some scuffs from use.
Radius CP125 Specification Overview
Battery Life (based on 5/5/90 duty cycle) - 8 hours (High power 4W/5W), 11 hours (Low power 2W)
Dimensions H x W x L (with standard battery) - 4.55 x 2.20 x 1.81 (115.5 mm x 56.0 mm x 46.05 mm)
Frequency - VHF (136 174MHz), UHF (435 480MHz)
Front Panel Programmable - Yes
Interference Eliminator Codes - 38 PL, 83 DPL (plus non standard codes)
Model Includes - NiMH Rechargeable Battery, Three-Hour Rapid Charger, Antenna, Belt Clip, Operating Instruction Manuals, One-Year Limited Warranty
Power - 2W/5W - VHF, 2W/4W - UHF
Voice Activation (VOX) - Yes (with optional audio accessory)
Warranty - One Year Limited Warranty
Weight (with standard battery) - 11.5 oz. (327 g)
VHF: 151.700, 151.715, 151.775, 151.805, 151.835,151.895, 151.925, 154.490,154.510, 154.540.
UHF: 464.500, 464.550, 467.7625, 467.8125, 467.850, 467.875, 467.900, 467.925, 462.575, 462.625, 462.675, 464.325, 464. 825, 469.2625, 469.500, 469.550.
The following frequencies are not allowed:
VHF: 142.605, 150.000, 151.000, 151.735, 159.385, 161.450, 162.275
UHF: 436.185, 436.210, 444.575, 444.605, 446.455, 451.030, 452.990, 458.560, 461.345, 462.560, 469.765, 475.330, 478.125, 478.155, 479.990
Add'l freqs can be added. All freqs. must be divisible by 5.0 or 6.25 kHz
With adjustable power levels and programmable function controls, the Radius CP125 provides users with the fl exibility and features they need to succeed. Fully equipped with Voice-Activated Transmission (VOX) capabilities,* the Radius CP125 supports hands-free communications via an optional headset so users can stay connected while focusing on the job at hand.
* Rapid drop-in charging now you can charge your radio in three
hours with the included drop-in rapid charger.
* Multi-channel capable four channels allow you to communicate
* High power 5 Watt (VHF) Adjustable power levels
Eight-character alphanumeric display with user-friendly icons to make information clear and easy to read.
Four front programmable buttons for such features as:
* Adjustable power levels to save battery life
* Keypad lock so users won t change channels accidentally
