New harris specialty gas regulator HP702-125-590-d ( )

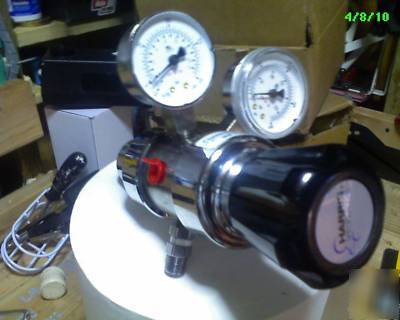

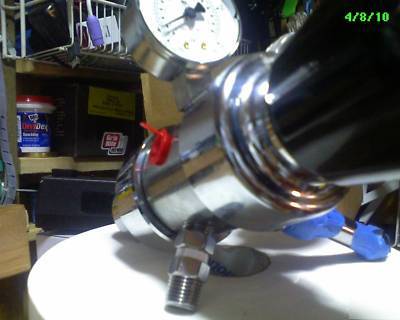

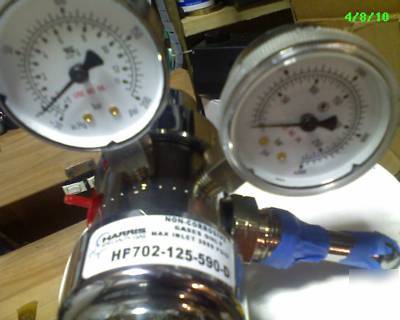

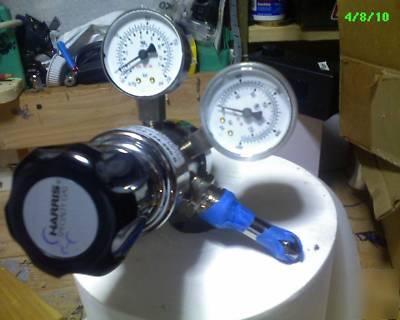

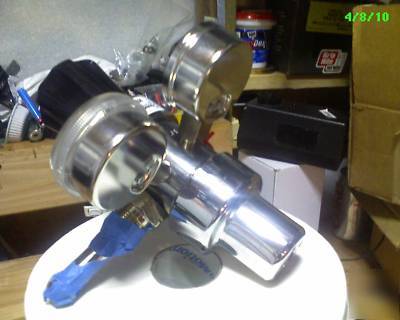

Harris Specialty Gas Regulator HP702-125-590-D (NEW)
High Purity - Chrome Plated Brass
A chrome plated brass two stage cylinder regulator with a stainless steel diaphragm for general laboratory use. The HP 702 provides constant delivery pressure from full to near empty cylinder conditions. The HP 702 is suitable for:
Recommended for gas purity up to Grade 5.0 (99.999).
2-1/8 302 stainless steel diaphragm eliminates contamination from diffusion or outgassing
One-piece encapsulated seat design to protect seat from particulate contamination
Chrome plated bonnet, body and fittings
2 Chrome plated dual scale gauges (psi/bar)
External relief valve standard
1 x 10-8 cc/sec. inboard helium leak rate maintains gas purity levels
Maximum inlet 3000 PSIG except for CGA 300 and 510 models which have a maximum inlet of 500 PSIG
