New rf mixer HMC488MS8G 1PCS hittite 4 - 7GHZ

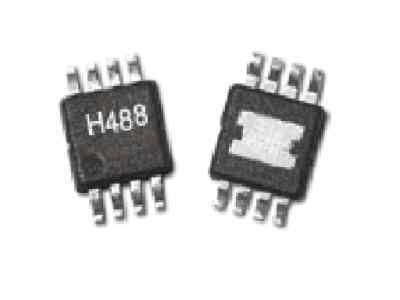

Brand new 1 Piece HMC488MS8GE - double-balanced mixer, SMT w/LO Amplifier, 4 - 7GHz.
The HMC488MS8G(E) is an ultra miniature double-balanced mixer with an integrated LO amplifier in an 8 lead plastic SMT MSOP8-G covering 4 - 7 GHz. This passive MMIC mixer integrates a GaAs Schottky diode quad, transformer baluns and a LO buffer on a single chip yielding a low conversion loss of 7 dB coupled with an input IP3 of +15 dBm. The LO buffer amplifier can be driven from 0 to +6 dBm and requires a single supply of +5V @ 46 mA. The device can be used as an upconverter, downconverter or bi-phase (de)modulator for a variety of point-to-point/multipoint, VSAT, telemetry or broadband WLAN applications.
Integrated LO Amp: 0 to +6 dBm Drive
Click below for full datasheet:
http:// /content/documents/data_sheet/hmc488ms8g.pdf
This new component will come cut in the original tape reel.
