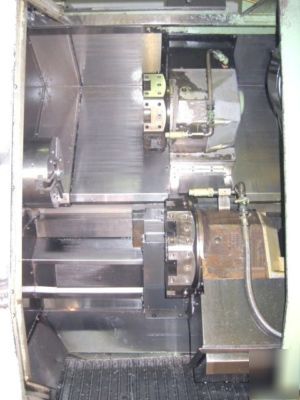

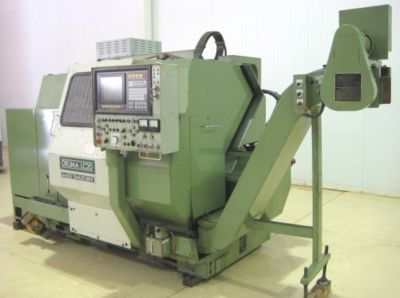

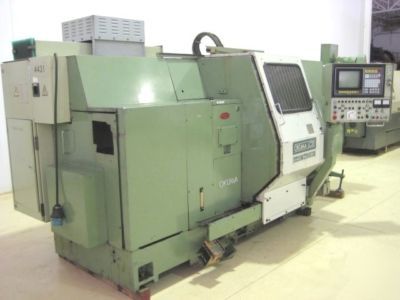

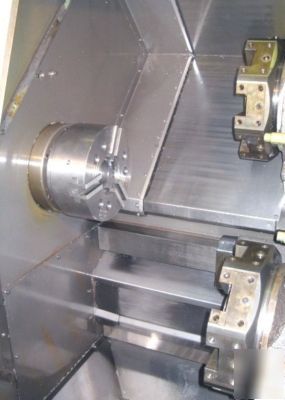

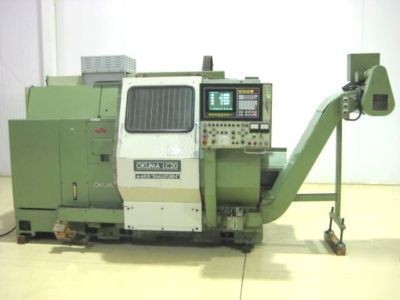

Okuma lc-20 2ST 4-axis cnc turning center lathe, LC20
OKUMA LC-20 2ST 4-AXIS CNC TURNING CENTER
MAXIMUM TURNING DIAMETER 11.81"
X AXIS TRAVEL (UPPER TURRET) 6.30"
X AXIS TRAVEL (LOWER TURRET) 4.33"
Z AXIS TRAVEL (UPPER /LOWER) 20.47"
RAPID TRAVERSE RATE X AXES 200 IPM
TURRET CAPACITY (UPPER / LOWER) 8 / 8 STATION TURRET
APPROXIMATE DIMENSIONS 140" x 80" x 85H"
MACHINE WEIGHT (APPROXIMATE) 13,000 LBS

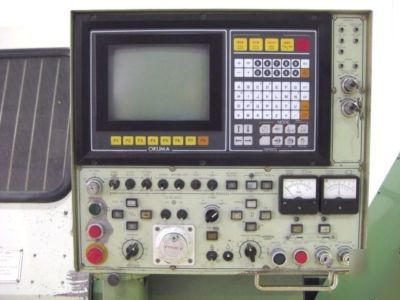

OKUMA OSP-5000L CNC CONTROL WITH 9" CRT,
RS-232C PORT INTERFACE FOR DNC OPERATION,
10" 3 JAW CHUCK, IGF (INTERGRAPHIC FUNCTION),
60 METERS EXTENDED TAPE STORAGE,
RIGHT HAND DISCHARGE LIFT-UP TYPE CHIP CONVEYOR (HIGH-REACH),
STANDARD COOLANT SYSTEM WITH TANK & PUMP,
ALL AVAILABLE TOOL HOLDERS, ALL AVAILABLE MANUALS
LOCATION: FRANKSVILLE, WI - NEAR MILWAUKEE, WI - UNDER POWER
