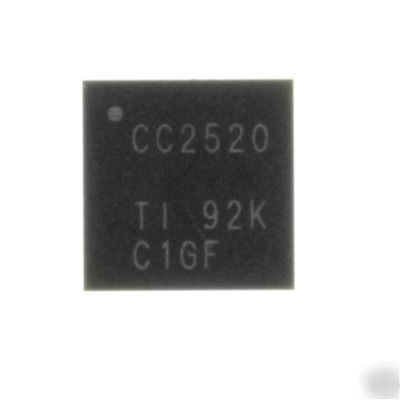

Zigbee CC2520 2.4GHZ rf transceiver ic for ism band qfn
second generation IEEE 802.15.4
* State-of-the-art selectivity/co-existence
Adjacent channel rejection: 49 dB
Alternate channel rejection: 54 dB
* Excellent link budget (103dB)
400 m Line-of-sight range
* Extended temp range ( 40 to +125 C)
* Wide supply range: 1.8 V 3.8 V
* Extensive IEEE 802.15.4 MAC hardware
support to offload the microcontroller
* AES-128 security module
* CC2420 interface compatibility mode
* RX (receiving frame, 50 dBm) 18.5 mA
* Clock output for single crystal systems
* RoHS compliant 5 5 mm QFN28 (RHD) package
* IEEE 802.15.4 compliant DSSS baseband
modem with 250 kbps data rate
* Excellent receiver sensitivity ( 98 dBm)
* Programmable output power up to +5 dBm
* RF frequency range 2394-2507 MHz
* Suitable for systems targeting compliance with worldwide radio frequency
regulations: ETSI EN 300 328 and EN 300 440 class 2 (Europe),
FCC CFR47 Part 15 (US) and ARIB STD-T66 (Japan)
* Digital RSSI/LQI support
* Automatic clear channel assessment for CSMA/CA
* 768 bytes RAM for flexible buffering and security processing
* Fully supported MAC security
* 6 configurable IO pins
* Frame filtering and processing engine
* Random number generator
ZigBee is a registered trademark owned by ZigBee Alliance, Inc.
The CC2520 is a second generation ZigBee / IEEE 802.15.4 RF transceiver for the 2.4 GHz unlicensed ISM band. This chip enables industrial grade applications by offering state-of-the-art selectivity/co-existence, excellent link budget, operation up to 125 C and low voltage operation.
In a typical system, the CC2520 will be used together with a microcontroller and a few additional passive components.
Search my listings for title keywords. If sold out, contact seller. This is the way to obtain additional quantities.
SECOND AND SUBSEQUENT ITEMS S&H ARE 33% THAT OF THE FIRST. YOU SAVE 2/3 .
If you have multiple item numbers in your basket, then requesting total from seller is best, as it can result in lower combined S&H.
This is all the email you will receive.
I focus my work on carefully packing and protecting parts in ESD-safe ways, NOT on spamming everybody with redundant emails.
