Idec izumi C1403FQ toggle switch - illuminated - arcole
Idec Izumi C1403FQ Toggle Switch - Illuminated - Arcole

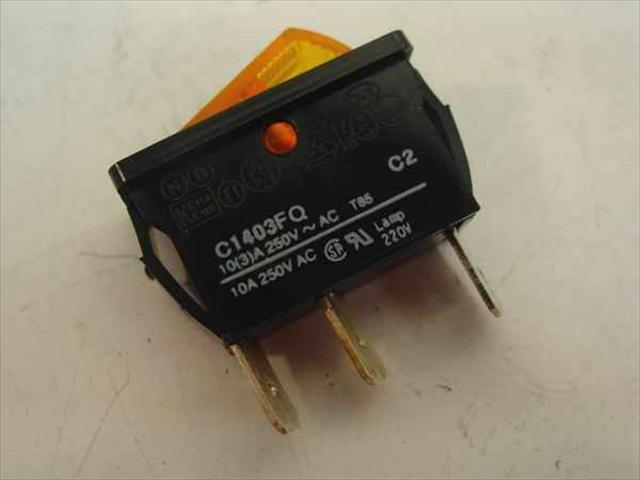

Idec Izumi C1403FQ Toggle Switch - Illuminated - Arcolectric
* As the text placement indicates, the switch function is between the closest pins
* and the lamp is between the middle and the more separated pin
* Thus the lamp can be used to indicate "power available"
* or "item switched on" depending on how you wire it!
* The switch capacity is 10 A @ 250 V~
* The lamp is a neon lamp with a resistor for use at 220 V.
* As most neon lamps, it ignites around 50 V and shines pretty good at 120 V.
* This switch is intended for a mounting hole measuring 12 X 30 mm.
* this switch has a nice tactile feel.
