Tektronix 80E01 sampling module TDS8000 CSA8000

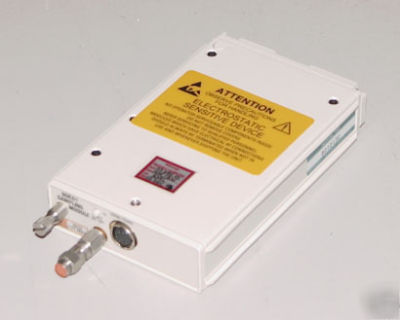

Tektronix 80E01 Sampling Module
The 80E01 is a single-channel, 50 GHz bandwidth sampling module. The 80E01 has a measured bandwidth 50 GHz and a calculated rise time 7.0 ps. Displayed noise is typically 1.8 mVRMS. The front-panel connector is female 2.4 mm and an SMA adapter is provided (2.4 mm male to 2.92 mm female) to maintain compatibility with SMA connector systems.
* 2.4 mm Precision Connector
This unit was designed to work with the Tektronix CSA8000 and TDS8000 Communication mainframes.
