Vacuum chuck VTZ84SMART cnc table for engraving milling
Vacuum Clamping Table VTZ84smart
Smart clamping a new vacuum clamping process with impressive results.
Smart Clamping is a specialized vacuum system using a maximum concentration of vacuum suction at each and every orifice below the table surface to create a holding capacity unmatched by any vacuum system found in the market place today. This new technology found nowhere else in the world was developed in Germany and now available for purchase in the U.S.A. You can now securely clamp workpieces having an even surface with a vacuum output of 500Watts per m without having to cover any of the remaining open suction holes. So throw away those toggle clamps and see what full production really means.
The tensile strength of this system is five times as great as when clamping with conventional radial turbines or as often practised, with industrial shop vacuum cleaners.
At the same time, mounting to a CNC machine is clearly simplified, since the feed cables require fewer cross-sections than conventional clamping technology which has been practised to date. Smart clamping avoids leakage instead of distributing it evenly on the surface by means of a particularly expensive ducting.
As an example of the efficiency of this process using one of our other table models, the following video shows an aluminium disk with a surface area of 7.09 (180mm) x 4.72 (120mm) and a thickness of 0.787 (20mm) equipped with several pockets. Here are the milling parameters:
* Chamber: 1 sealed vacuum chamber
distributor, strain relief fitting and vacuum gage
* Weight: about 3.3 lbs. (1.5 kg) including hose, connector, manifold and mats
* Measurements: 8" x 4" x 3/4"
* Effective surface: 8 x 4

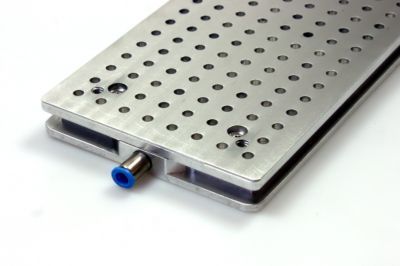

Smart clamping VZT84smart vacuum table with 4 threaded holes for surface mounting
Single manifold with hose attachment from your vacuum generator
1 vacuum hose with quick-connection
Should this vacuum table not satisfy your requirements, then please do not hesitate to contact us directly. This applies in particular, if you, as the manufacturer of machines or equipment have regular requirements and are looking for low-cost customisation.
You will receive a guarantee of two years from the date of purchase with this table. Excepted are mechanical defects that are the result of faulty processing or damage by the user.
