New 8 character vfd - vacuum flourescent display

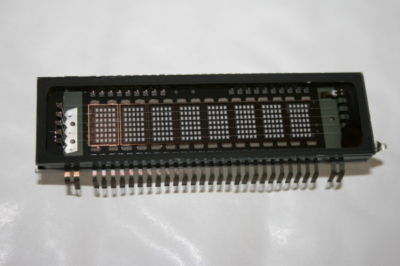

Manufactured by BOE Display Technology, these are an 8 character VFD - Vacuum Flourescent Display.
Each character is a dot matrix of 5x7 dots so any character can be displayed.
Grid voltage is recommended between 28V and 31V and the filament voltage is 2.5V - 2.9V.
Colour when lit is green (bright ! - 700cd/m2 luminence).
Overall dimensions are 75mm x 20.5mm x 6.5mm and the pins spacing is 2mm. The actual characters are each 4.25mm wide x 8mm high.
Supplied with comprehensive manufacturers datasheet which includes all pin outs etc.Check out my other items!Be sure to add me to your favourites list!CRYPTIENSIS 2004 ELECTRONIC SURPLUS
