Omega lcja-2K heavy duty shear beam load cell 0-2,000
OMEGA Heavy duty shear beam load cell, 0-2,000 lb capacity
Visit This Link For Full Info On The Product: http:// /Pressure/pdf/LCJA.pdf
And Also This Link: http:// /pptst/LCJA.html
Rated Output: 3 mV/V 0.0075 mV/V (actual output supplied with each load cell)
Excitation: 10 Vdc (15 Vdc maximum)
Operating Temperature: 0 to 150 F (-18 to 66 C)
Compensated Temperature: 0 to 150 F (-18 to 66 C)
Thermal effects: Zero - 0.0015% FS/ F Span - 0.0008% RDG/ F
Bridge Resistance: 350 Ohms nominal
Full Scale Deflection: 0.015 in to 0.025 in
Construction: Nickel Plated Steel

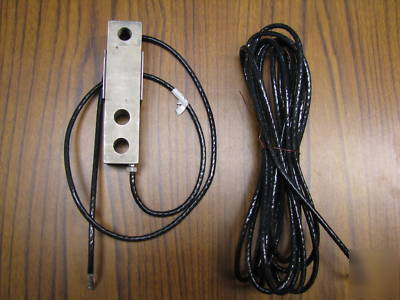

NOTE: SEE PICTURE - THE CABLE HAS BEEN CUT AND THIS UNIT WAS USED ON A PROTOTYPE MACHINE. The reason it is for sale is because the prototype was re-designed using a completely different approach for measuring force. It works purfect - just not needed anymore
