175 ton x 12' wysong hydraulic press brake w/3 axis cnc

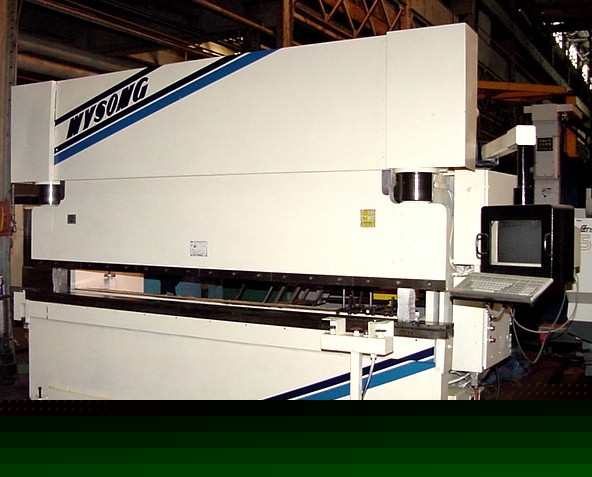

175 TON x 12' WYSONG HYDRAULIC PRESS BRAKE w/3 AXIS CNC
WYSONG 175 TON X 12' HYD. CNC BRAKE
MODEL PH-175 S/N HPB-49-100 NEW 1990
CAPACITY ........................................... 175 TON
OVERALL LENGTH OF BED & RAM ........................ 12'
DISTANCE BETWEEN HOUSINGS .......................... 10'6"
STROKE ............................................. 8"
RAM ADJUSTMENT ..................................... 4"
DIE SPACE .......................................... 17"
CLOSED HEIGHT ...................................... 9"
THROAT DEPTH ....................................... 8"
DISTANCE BED TO FLOOR .............................. 34"
APPROACH SPEED ..................................... 300 IPM
PRESS SPEED ........................................ 22 IPM
RETURN SPEED ....................................... 250 IPM
- 3 AXIS CNC BACK GAUGE (20.1" X-TRAVEL, RAM Y1 & Y2)
- RAM CAN BE PROGRAMMED TO BE TILTED LEFT TO RIGHT 3/4"
- REMOTE PEDESTAL PALM BUTTONS
- BRAND NEW DUAL CORE PENTIUM COMPUTER (JUST INSTALLED BY
- JUST INSTALLED DOS BASED PH CONTROL MODEL GC600 WITH BACK
- PROGRAMMABLE FOR THOUSANDS OF OPERATIONS.
- NEW VALVE DRIVE CARDS & PRESSURE DRIVE CARD JUST
INSTALLED BY WYSONG. INSTALLED 3/25/10
DIMENSIONS: 153" L-R x 58" F-B x 106.5" H
TO SEE A VIDEO OF THE WYSONG TECHNICIAN RUNNING THIS BRAKE
COPY THIS LINE INTO YOUR BROWSER: http:// /watch?v=QRN8EBGM6Nc
.**** COMPLETELY GONE THROUGH BY
WYSONG AND GIVEN A CLEAN BILL OF
HEALTH. THIS MACHINE IS READY TO GO
AND START PRODUCING PARTS. ****.
