Alarm lock DL1200 narrow stile access lock *body only

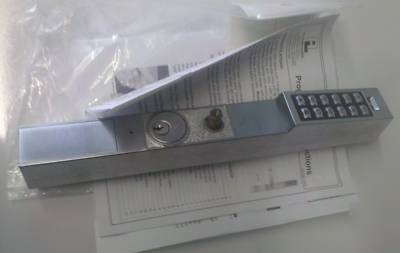

This is an Alarm Lock DL1200 Access Lock (Body Only)
What you see in the picture is what's included.
Alarm Lock DL1200 Narrow Stile Access Lock w/ PIN
DL1200 Series supports 100 users, fingertip/keypad programmable. (Includes 2 Lithium 3V batteries). Works with existing Adams-Rite door hardware.
Your new DL1200 Alarm Lock Trilogy electronic digital lock is a manually programmable narrow stile entry trim for Adams Rite 4710, 4730 and 4900 deadlatch locks, and 1850, 1950, 4070, MS1850S and MS1950S series deadbolts for narrow stile aluminum doors*. The DL1200 is a rugged entry lock of advanced design with several programmable features.
Three security levels are provided: Master (can perform ALL functions), Manager (can perform MOST functions plus entry), and Basic User (entry only).
The lock includes 100 User Codes (consisting of Managers and Basic Users), plus three "one-time entry" Service Codes. The Manager/Basic User Codes are organized similar to a grid-ten banks of ten Access Codes.
* PIN code 100 to 2000 users.
* 40,000 event audit trail in 1300 Series models, provides door usage activity reports at wireless handheld printer, laptop or PC.
* All-metal, vandal-resistant 12-button keypad supports 3-6 digit PIN codes, and multilevel user hierarchy (master, manager, supervisor, basic users).
* Keypad or PC programmable. Quickly and easily add or delete users and enter passage mode , service codes, group lock-out & group-enable.
* Wide weatherproof operating range from -31 to 151 F (-35 to 66C).
* Wireless standalone locks: Long-life, battery- operated; Includes audible and visual low battery alert. (Uses standard off-the-shelf batteries.)
* Non-handed; fully field-reversible.
* Key override; interchangeable cores supported (Corbin/Russwin, Yale, Schlage, Medeco.)
* Mortise Cylinder, 1-1/4 supplied. (Supports 1-1/8, 1-1/4 and 1-3/8 ).
Compact styling 14-3/8 H x 1-5/8 D x 1-3/4 W.
Backsets 31/32 ,1-1/8 and 1-1/2 ; Stile thickness 1-3/4 .
