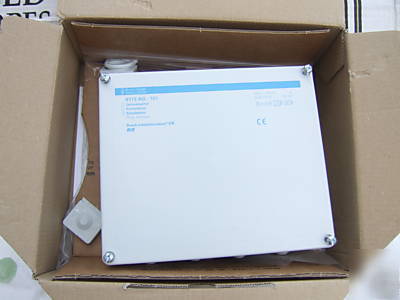

Abb kombiaktor eib 4-f ap 6173 ag-101 eib / knx
The combi actuator is a surface mounted
2 x 2 shutter drive mechanisms
1 x 2 shutter and 2 x light switching
Local operation is possible using
The extension inputs can also be used
as 4-fold binary inputs for 24 V or 230 V.
It is possible to assign parameters to
the preferred state for bus voltage
failure, bus voltage recovery and mains
The device requires a power supply
Power supply EIB 24 VDC, via the bus line
Auxiliary supply 230 VAC +/- 10 %, 50 Hz
Inputs 4, for extension input operation or
Signal voltage 230 VAC +10/-15 %, 50 60 Hz
The contact scanning voltage can be
taken from the device or produced
Permitted cable length max. 100 m
Outputs Shutter actuator mode 2 x 2 changeover contacts
Switching current per channel 5 A, cos = 0.5
Total current max. 10 A for all
channels related to mains terminals
Switch actuator mode 4 switch contacts
Switching current (multi-phase mode) at TU < 35 C:
3 x 6 A and 1 x 2 A, cos = 0.5
3 x 4 A and 1 x 1.5 A, cos = 0.5
Switching current (single-phase mode) at TU < 35 C:
Operating and display elements LED and push button for assigning the
Type of protection IP 54, EN 60 529
Ambient temperature range Operation - 5 C 45 C
Storage and Transport -20 C 70 C
Design Surface-mounted device
Housing, colour Plastic housing, grey
Connection Power supply, Screw/plug-in terminals
load circuits and inputs Wiring range max. 2.5 mm2
Dimensions 187 x 160 x 50 mm (H x W x D)
CE norm in accordance with the EMC guideline and
the low voltage installations.
