Checker's hose bridge system uhb 3035 (6 sets)

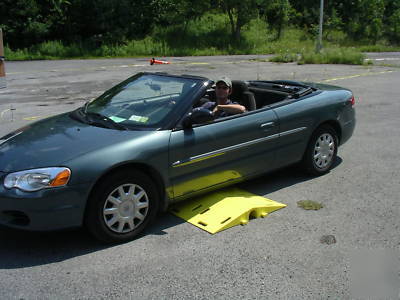

Checker's UHB 3035 hose bridge system is a great way to protect expensive cables or hoses (up to 3.5 inches diameter).

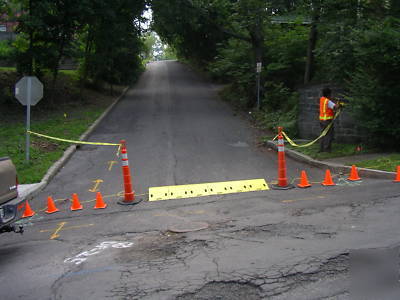

Each set is 16-inches wide and so six sets of the ramp system linked together are about 8 feet long which covers about 1 lane of traffic.
Each set includes the central tunnel and 2 ramps. Equipment was only used a few times.
There is a 1/2 inch hole drilled opposite of the handle of each central tunnel piece. This was done to allow the system to be bolted to the ground so it didn't shift.

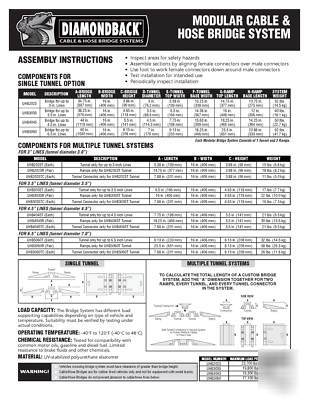

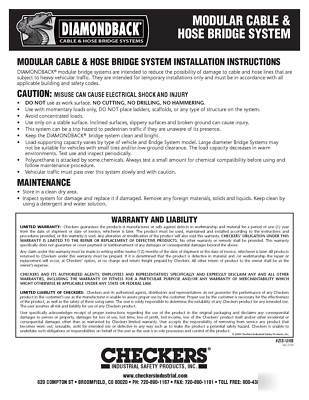

For more detailed specifications, please see picture 4 or the assembly instructions at:
http:// /PDFs/dbkassemblychk.pdf
