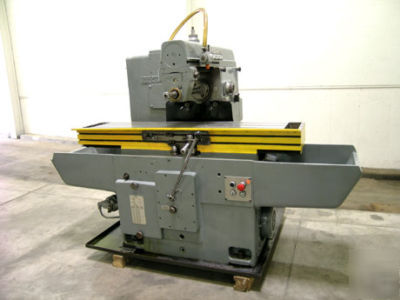

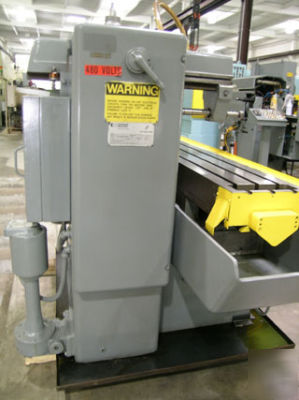

Cincinnati series 107-122.5 powermatic horizontal mill
(1) USED - CINCINNATI SERIES 107-122.5 MODEL DK
PLAIN POWERMATIC PRODUCTION MILLING MACHINE*
Serial No.31121H76-0010Condition - USEDNew -1976
Motor Driven with 7.5 HP, 3 Phase, 60 Cycle, A.C. Spindle Drive Motor. 2 HP,
3 Phase, 60 Cycle, A.C. Feed Drive Motor. Electrical Control Panel and
Working Surface of Table 12" x 60"
Spindle Carrier Vertical Adjustment 8"
Distance Table to Centerline of Spindle - Maximum 14-1/4"
Distance between Spindle Carrier & Overarm Brace 19-1/2"
Size of Taper in Spindle No. 50 NST
Number and Range of Spindle Speeds (16) 50 - 2000 RPM
Number and Range of Table Feeds (16) 1 - 40 IPM
Spindle Carrier Feed Rates 1 - 40 IPM
Table Rapid Traverse Rates 300 IPM
Approximate Floor Space 100"L x 85"W x 71"H
Outboard Dynapoise Overarm Support with Arbor Supports.
Right and Left Hand Hi-Lo Spindle Speed Selector
