Cnc linear rail 20MM x 16 under supported 4 open pb

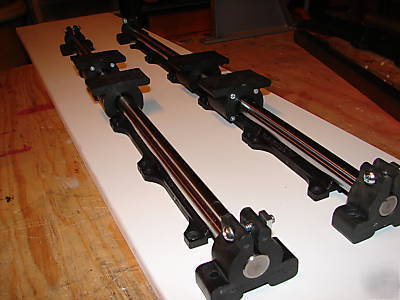

You Get two hardened, polished, and underside drilled and tapped linear rails 16" long each, and each rail has two 20 mm (Slightly larger than 3/4") open linear pillow block bearings that ride over the underside supported 16" rails. And four bolt down end supports.
Number of supports not bolted to the underside of each rail = 2 but linked to each other by 1/2 moon links
Number of bolt down holes for bolting to your machine frame per undersupport =4each for a total per rail of 12 bolt down positions- sized for up to 1/4" bolts.
