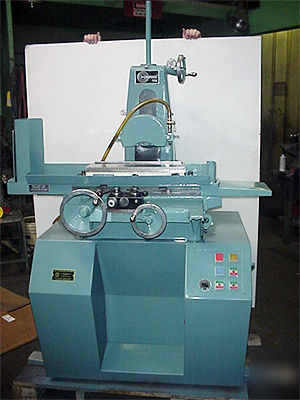

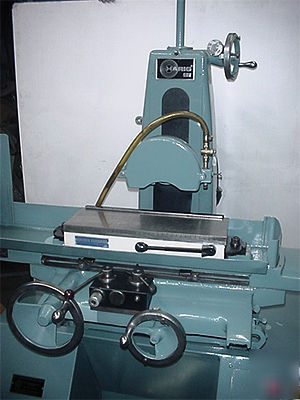

Harig model 618W full hydraulic table surface grinder
Harig Model 618W Full Hydraulic Table Surface Grinder
referencing Harig Model 618W Full Hydraulic Table Surface Grinder
Harig Model 618W Full Hydraulic Table Surface Grinder
Technical Specifications: * Item #7572-420
* Cross feed travel: 6-3/4"
* Vertical working height under 7" wheel: 12"
* Table work area: 6" x 18"
* Standard grinding wheel: 7" x 1/2" x 1-1/4"
* Elevating hand wheel graduations: .0005"
* Cross feed hand wheel graduations: .001"
Spindle type: direct drive * Spindle drive motor: 1 HP(208-220-440V/3PH/60HZ)
* Estimated dimensions: 48" x 45"
* Estimated weight: 930 lbs.
EQUIPPED WITH: * Walker 6" x 18" fine pole magnetic chuck
Contact Cliff Davis at 401.724.3200 during normal business hours (EST) or email ****@goldmachinery.com referencing 7572-420.
We will partially crate this item for $295.00 or we will skid and cover when possible for $145.00. As always we will load your truck from our dock at no extra charge. This item may also be transported via flat bed truck. We will assist in rates if requested.
