Hp agilent 89441A vector signal analyzer 89441A 89431A

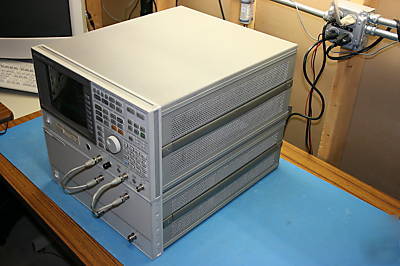

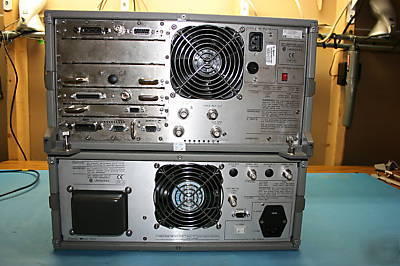

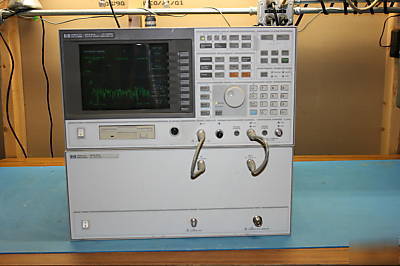

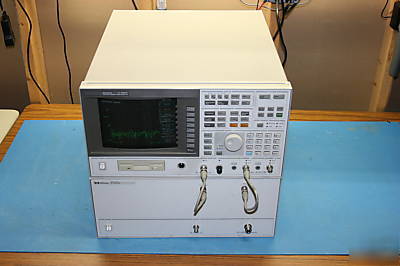

HP 89441A Vector Signal Analyzer System, DC to 2.65 GHz.
Comes with 3 BNC cables, and 9 pin cable (Complete cable set)
* Option 1C2: Instrument BASIC
* Option AY7: Second 10 MHz Input Channel
* Option AYJ: Adaptive Equalizer
* Option AY9 Extend Time Capture to 1Msample
* Option AYA: Vector Modulation Analysis
* Option AYB Waterfall and Spectrogram
* Option UFG: 4MB Extended RAM and Additional I/O
The 89431A RF Section is designed to couple with an Agilent 89410A Vector Signal Analyzer (VSA) to extend the coverage from 10 MHz to 2.65 GHz.
When an Agilent 89410A VSA and an 89431A RF Section are combined, it makes an Agilent 89441A VSA.
The HP/Agilent 89410A covers a frequency range of dc to 10 MHz and offers an optional second channel. The second channel makes it possible to measure frequency response or perform vector network analysis, and the built-in math functions facilitate measurement calibration and correction. Two-channel statistical measurements such as cross-correlation and coherence can also be made.
The HP/Agilent 89410A provides a flexible source for circuit stimulation. Sinewaves, periodic chirps (sinewave sweeps), and pseudo-random noise are available, along with user-definable arbitrary waveforms. The arbitrary waveforms operate on a block of up to 4096 complex points. Any of these signals can be used as a stimulus while spectrum measurements are made elsewhere in the circuit. Source level and dc offset of the pattern are all controllable by the user.
* Resolution 312.5 Hz to 3 MHz
* Sine, periodic chirp, pseudo-random noise, and arbitrary source .
* Agilent 89431A 2 MHz to 2.65 GHz Downconverter
Contact details: ****@midwestate.com
