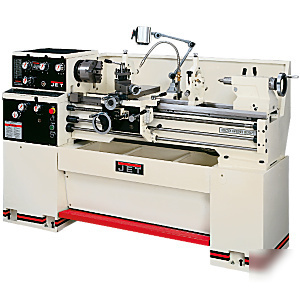

New brand jet lathe gh-1440W-1 w/ acu-rite 200S dro
with Acu Rite 200S DRO Installed
Swing over Cross Slide (in.): 8-1/2
Spindle Taper W/ Sleeve: MT-5 (MT-3)
Range of Spindle Speeds (RPM): 40 - 1800
Number of Longitudinal and Cross Feed Rates: 40
Range of Longitudinal Feeds (IPR): .0012 - .0294
Range of Cross Feeds (IPR): .0003 - .0103
Range of Inch Threads (TPI): 4 -112TPI
Range of Metric Threads: 0.45 - 7.5
Max Tool Size (in.): 5/8 X 5/8
Compound Slide Travel (in.): 3-1/2
Cross Slide Travel (in.): 6-3/8
Tailstock Spindle Travel (in.): 4-3/4
Taper in Tailstock Spindle: MT-3
Steady Rest Capacity (in.): 3-3/4
Follow Rest Capacity (in.): 2-3/4
Hardened and ground gears are featured in the headstock and gearbox
D1-4 spindle is precision ground for accuracy and supported by high quality tapered roller bearings
Headstock is constantly oiled during operation
Splined, not keyed, shafts are utilized
Gearbox gives larger threading and feed capabilities with no gear changes
V-way bed design is induction hardened and ground
Gap bed section provided for larger diameter work
Independent leadscrew and feed rod
Spindle actuation control is apron mounted
Inch-metric dials are standard
Compound and cross slide have backlash elimination
Adjustable gibs are incorporated in the carriage and slideways
Tailstock may be offset for turning tapers and includes an inch-metric graduated quill
6" 3 jaw direct mount chuck with top reversing jaws
Coolant system with splash guard
Centers and headstock center sleeve
Threading dial, Tool box and tools
