Simpson strong-tie fast-pac acrylic adhesive concrete

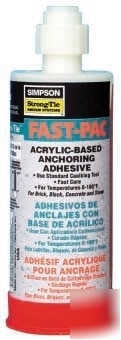

* One (1) FAST-PAC - 5 Oz Coaxial Cartridge High Strength Adhesive Cartridge
Acrylic-Tie is a two component, 10:1 ratio acrylic based adhesive for use as a high strength, anchor grouting material. Formulated for use in all types of weather, AT is designed to dispense easily and cure at temperatures down to 0 F. Resin and initiator are dispensed and mixed simultaneously through the mixing nozzle. AT meets the physical requirements of ASTM C881, Type I & IV, Grade 3, Classes A, B & C, except Acrylic-Tie is a non-epoxy product formulated for fast cure time.
* Pick proof sealant around doors, windows and fi xtures
ICC-ES ER-5791; City of L.A. RR25459; Florida FL 2304.1; NSF/ANSI Standard 61 (10.03 in2/5000 gal); Multiple DOT listings. The Load Tables list values based upon results from the most recent testing and may not refl ect those in current code reports. Where code jurisdictions apply, consult the current reports for applicable load values. APPLICATION: Surfaces to receive adhesive must be clean and free of frost. The base material temperature must be 0 F or above at the time of installation. For information on installations below 0 F contact Simpson. Mixed material in nozzle can harden in 5 7 minutes. For installations in or through standing water, see page 15 for details.
12 months from date of manufacture in unopened cartridge.
For best results store between 32 F - 80 F. Partially used cartridges can be stored for a limited time by leaving nozzle in place. To re-use, attach new nozzle.
Resin white; Initiator black.
When properly mixed, adhesive will be a uniform gray color.
Anchors installed with Acrylic-Tie (AT) adhesive have been tested in accordance with ICC-ES's Acceptance Criteria for Adhesive Anchors in Concrete and Masonry Elements (AC58) for the following:
In addition, anchors installed with Acrylic-Tie adhesive have been tested in accordance with ICC-ES's Acceptance Criteria for Unreinforced Masonry Anchors (AC60) and NSF/ANSI Standard 61, Drinking Water System Components - Health Effects.
PROPERTY TEST METHOD RESULTS Consistency (77 F) ASTM C 881 Non-Sag/Thixotropic Paste Heat Defl ection ASTM D 648 149 F (65 C) Bond Strength (moist cure) ASTM C 882 2,900 psi (2 days) 2,970 psi (14 days) Water Absorption ASTM D 570 0.23% (24 hours) Compressive Yield Strength ASTM D 695 10,210 psi (7 days) Compressive Modulus ASTM D 695 660,800 psi (7 days) Gel Time (77 F) ASTM C 881 9 min Thin film
CHEMICAL RESISTANCE Very good to excellent against distilled water and inorganic acids. Fair to good against organic acids and alkalis, inorganic alkalis, and many organic solvents. Poor against Ketones. For more detailed information visit our website or contact Simpson Strong-Tie and request Technical Bulletin T-SAS-CHEMRES06. The performance of this product results from its unique formulation which is proprietary to Simpson Strong-Tie. The product may also be protected by one or more of U.S. Pats. 5,643,994; 5,965,635; 6,228,207, licensed from ITW.
