Solid tine excavator grapple

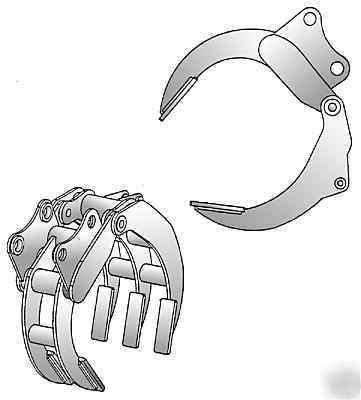

Rockland ST Excavator Grapples are designed with the same open frame design that we use on the proven MA land clearing rakes. They are tough, built entirely out of high-strength, alloy steel. The high-strength steel tube frame, heavy-duty sealed pivot pin, and reinforcement at all critical stress areas add up to years of dependable service. These tough grapples are ideal for everything except severe service applications. If you need to reach and grab something, you owe it to yourself to mount the Rockland ST Grapple on your machine and really get a grip on things.
Rockland Excavator Grapples mount on the stick in place of the standard bucket using standard factory pins. An optional Rockland pin and bushing kit is available that allows the grapple to be installed on more than one machine in the same weight class. The grapple is supplied with a support strut and a strut mounting bracket that must be welded to the bottom of the excavator stick.
This Rockland grapple is designed specifically for excavators producing a breakout force of 16,000-19,000 Lbs. Typical excavators in this range have an operating weight between 21,000-32,000 Lbs. Common machines in this size range include:
* Komatsu: PC120, PC128, PC138
