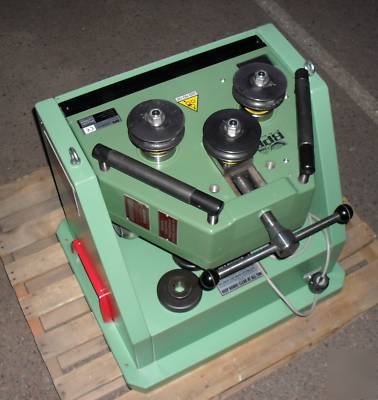

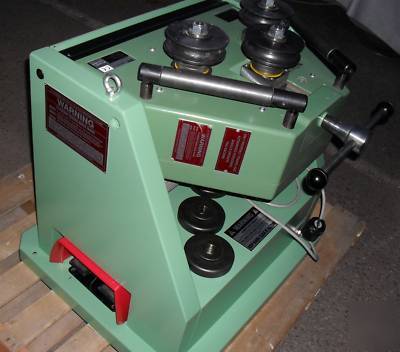

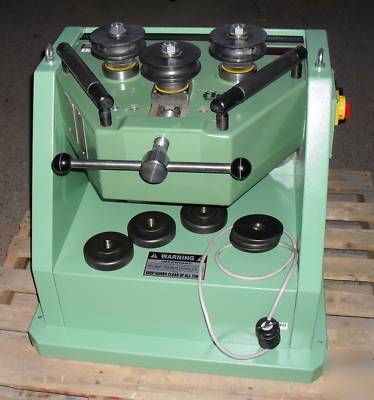

Eagle CP30 tube-pipe roll bender pyramid 3 point as nu
Flats 3" / Tube 2-3/8" / Angle 1-1/2"
Rugged, Versatile and Highly Cost Effective.
The Eagle CP30 is probably the most used Section Bender (angle roll) in the world. Equipped with a LED digital display (except "E" models) to monitor the bending roll, this machine gives accuracy in all rolling application. The unit uses the Powerful Pyramid Geometry with lower rolls driven and fixed in position and the top roll adjustable to obtain different bending diameters.
* LED Digital Display to monitor top roll (except "E" models)
* Hardened Universal Rolls, New Design more versatile
* 3 Way Adjustable Lateral Guides
* Heavy Duty Cast Steel Foot Pedals with E-stop (on "P" Models)
* Disappearing Flush Faced Design
* Automatic Top Roll Locking Pin for EASY tooling change out
* Higher Rolling Speed & Heavier Machine Weights
* Thermal Motor Overload Protection
* Siemens brand motor controls
* Patented Z-block top slide block on adjustable gibs

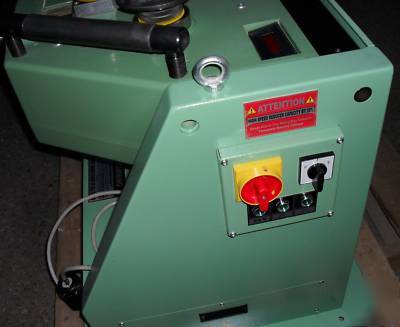

Foot pedal controls on trailing lead for left/right rotation with emergency
Mechanical adjustment of top roll with position monitored by digital display
Two driven rolls, knurled for optimal traction
Steel frame FE 430B, heavily dimensioned
Shafts in high strength alloy steel 38NCD4, heat treated and ground to precision tollerance
Gears in special alloy steel with precision ground teeth
Roll components in nickel-chrome tool steel hardened to 59/60 HRC
External machine top cases in shock resistant ABS polymer
Working position with horizontal and vertical shafts
Machine dimensions: base 680x 800x 825mm height
Dimensions: Base 680 x 800 - Height 825
