Exfo ftb-100B mini otdr w/ ftb-7200D-023-ei

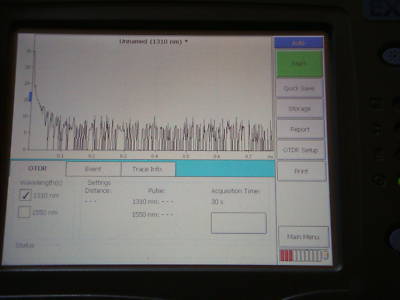

The FTB-100B Mini-OTDR is a dedicated optical time domain reflectometer that characterizes a fiber-optic span, usually optical fiber sections joined by splices and connectors. The optical time domain reflectometer (OTDR) provides an inside view of the fiber, and can calculate fiber length, attenuation, breaks, total return loss, and splice, connector and total losses.
The FTB-100B Mini-OTDR supports EXFO s extensive line of OTDR test modules, which offers all the features required by both intensive and occasional OTDR users.
EXFO's fast OTDR test modules generate accurate data consisting of up to 128 000 points per trace for optimal accuracy. Data can be submitted for Pass/Fail validation based on user-defined thresholds for such values as splice loss, total loss, backreflection, etc.
* Visual fault locator (optional)
* Pass/Fail result validation
* Large choice of high-performance, easily interchangeable OTDR modules
Dual-wavelength (1330nm +1550nm) OTDR Module:
FTB-7200D-023B-EI = SM access OTDR module, (9/125 m)
EXFO s FTB-7200D helps you boost test productivity for
inside-plant applications. Their exceptional 1 m event dead zone enables you to
easily locate and characterize all events between the transmitter and the central
office s fiber distribution panel. This feature also comes in handy in metro, access
and FTTH network applications, where events are usually closely spaced.
The FTB-7200D model is ideal for private/premises/enterprise network testing.
It offers the industry s shortest dead zones, as well as lightning-fast acquisitions.
Test multimode fiber within premises, or singlemode fiber between premises all
with a single OTDR unit and maximize your return on investment.
Delivering Higher Accuracy for Event Location:
The FTB-7200D locates events with pinpoint accuracy:
* Up to 128 000 sampling points for higher trace resolution
* Sampling resolution down to 4 cm, for ultra-accurate fault location
* Better linearity down to 0.03 dB/dB for more accurate event characterization
* Wavelength: i(nm): 1310 20/1550 20
* Dynamic range at 20 s j (dB): 36/34
* Attenuation dead zone (m): 4.5/5
* Distance range (km): 1.25, 2.5, 5, 10, 20, 40, 80, 160, 260
* Pulse width (ns): 5, 10, 30, 100, 275, 1000, 2500, 10 000, 20 000
* Sampling resolution (m): 0.04 to 5
* Sampling points: Up to 128 000
* Distance uncertainty n (m): (0.75 + 0.0025 % x distance + sampling resolution)
* Measurement time: User-defined (60 min maximum)
* Typical real-time refresh (Hz): 3
* Stable source output power o (dBm): 7 (7200D)

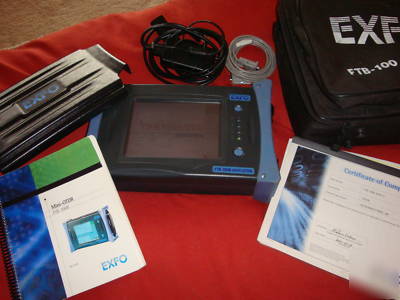

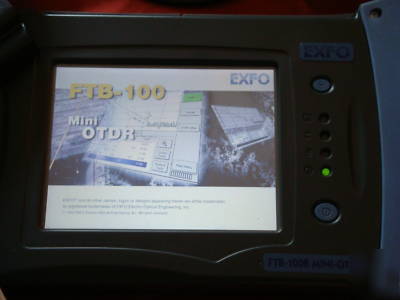

- EXFO FTB-100 Mini-OTDR Main Frame
- EXFO FTB-7200D-023B-EI Singlemode 1310/1550 Module
- Interchangeable SC Connector For Module

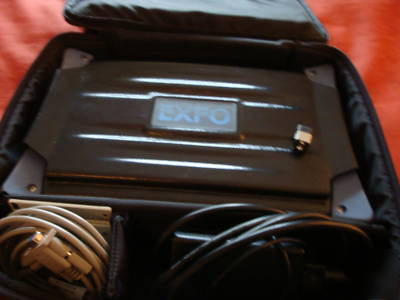

- Soft Carrying Case With Strap
This unit is in very good condition with a new product warranty. Save thousands over a new unit , performs the same and has the same warranty.
THE UNIT COMES WITH A 7 DAY RIGHT OF REFUSAL AND 180 DAY WARRANTY
