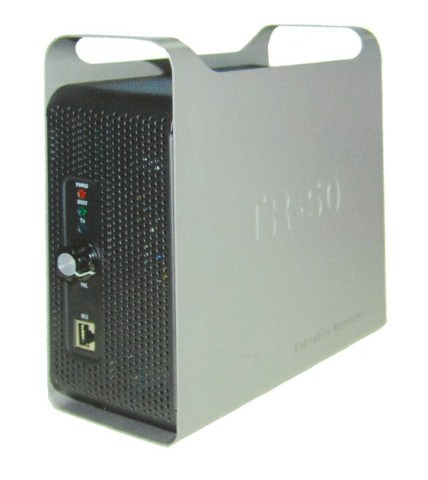

HYT TR-50 VHF Repeater Base Station for Ham/Cb Radio
The HYT TR-50 is the smallest portable repeater currently on the market. It has been designed for use in security, hospitality and many other businesses, with a durable die-cast chassis and a long list of features it is well worth considering.
CTCSS/CDCSS encoding & decoding, eliminates interference from other radio users
The TR-50 provides selectable AC(100 240V 50/60Hz)/DC(10.2V~14.6V) power supply. Normally users can equip battery back-up system connected to the external DC jack with floating charge function in the mean time. This supports auto-switching to DC battery once the AC power supply fails.
MULTI-CONTROL FOR ONSET OF THE FAN
The powerful DC brushless fan inside the cabinet is to effectively ensure the transmitter's durability and stability while working at tough situations. Three options for the jumpers are PTT controlled, Continuous and Temperature controlled respectively.
The LED indicators on the front panel highlight system status at a glance, including power-up, receive and transmit.
Users can set either a 25KHz or a 12.5KHz channel spacing to accommodate present and future channel allocations according to local radio regulations.
The repeater provides a real-time tuning function from a desktop or portable PC. Radio parameters for programming are squelch, channel spacing, CTCSS/CDCSS deviation, Rx BPF etc.
BASE STATION CAPABILITIES & LOCAL SPEAKER
The TR-50 can be operated as a full-duplex base station with the included speaker microphone. In addition, a built-in speaker on the front panel makes it available that the channel conversation can be monitored.
COMPACT DESKTOP DESIGN & DUPLEXER INSTALLATION
This portable repeater can be placed in office environments or dispatch center with minimal space required.
Frequency Range: VHF 146-174 MHz
Dimensions: 218 mm?90mm?220mm (8.58 in. X 3.54 in. X 8.66 in.)
