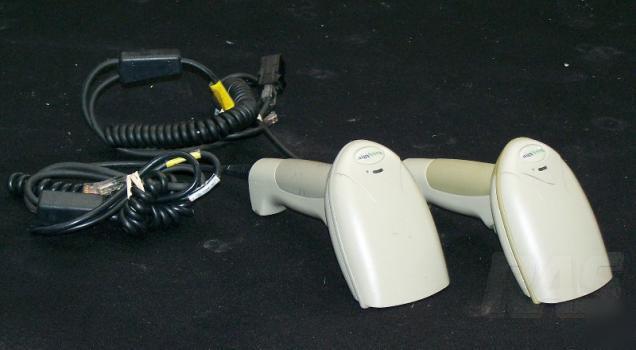

Lot of *2* handheld IT3800 barcode scanner ibm cord %
Lot of *2* HANDHELD IT3800 BARCODE SCANNER IBM CORD %
These scanner are in excellent condition!
The cable on this scanners designed for IBM 3151, 3471, 3472, 3476, 3477, 3482, 3486, 3487, 3488 (102 Key, 122 Key).
Bright, Sharp and Focused Aiming Line
Powerful, Flexible Architecture
Real World Reading Performance
Illumination: 630 NM Visible Red LED
Receiving Device: 3648 element linear imager
Reading Distance: From 1 in. (2.5 cm) to 8 in. (20.3 cm) on medium density codes
Reading Width: 5 in. (12.7 cm) code width at 7 in. (17.8 cm) distance
Resolution: 3 mil. at 3.5 in. (8.8 cm) distance
Scan Rate: Programmable to 270 scans per second
Decode Rate: 270 decodes per second
Mechanical Shock: Operational after 50 drops from 5 ft. (1.53 m) to concrete
Ambient Illumination: 0 - 70,000 lux
MTBF: per MIL-HDBK-217F Ground Benign exceeds 100,000 hours
Codabar, Code 3 of 9 including PARAF, Interleaved 2 of 5, Code 2 of 5, Matrix 2 of 5, Code 11, Code 93, Code 128, UPC, EAN/JAN, China Postal Code, RSS. PDF417 in 3800 PDF-12 model.
All popular PCs and terminals via keyboard wedge, keyboard replacement/direct connect, Apple ADB, USB, TTL level RS-232, wand emulation mode, TTL level Serial Wedge, and includes (HHLC) non decoded laser compatible output. IBM 4683/93 and OCIA retail terminals in 3800 LR-11 model. True RS-232 in 3800LR-13 model.
