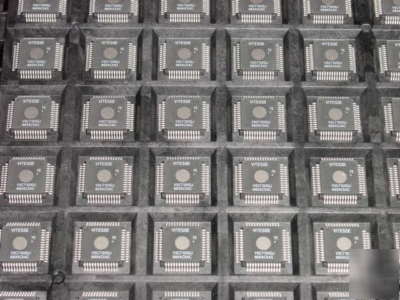

6 pcs. vitesse# VSC7120QJ, 1.0625 gbit/sec channel repe
The following item has just been added to our store in a larger qty. This item is for 6 pc. only!
IC 1.0625 Gbit/sec Channel Repeater / Hub Circuit
The Fibre Channel Repeater / Hub Circuit is used in full-speed (1.0625 Gb/s) Disk Arrays, Hubs and
Switches. It contains a monolithic Clock Recovery Unit (CRU), a digital Signal Detect Unit (SDU) and a Port
Bypass Circuit (PBC). The CRU may be used alone to implement a general purpose Repeater needed for many
Disk Array and Switch applications where a retimed and buffered signal is required. The CRU, SDU and PBC
may also be used together to implement a single-chip Arbitrated Loop Hub Node. As a Hub node, the VSC7120
retimes/buffers incoming serial data, detects whether a valid signal is present and allows isolation of non-functional
ANSI X3T11 Fibre Channel Compatible
Monolithic Clock Recovery Unit
- Retimes & Buffers Received Data
- Run Length Violation Detector
Suitable for Both Coaxial and Optical
- < 1.3W, Typical, for Hub Mode
- < 1.0W, Typical, for Repeater Mode
52-Pin, 10x10mm Thermally Enhanced PQFP
