87.5 ~ 108.0 mhz professional exciter w/ graphics disp.
THE OFFERED UNIT IS NOT FOR AMATEUR USE AS IT IS THE HEART OF A COMMERCIAL TESTED AND QUALIFIED UNIT(FM RADIO EXCITER).THE REST PARTS ARE JUST THE FINAL AMPLIFIER,SUITABLE POWER SUPPLY,LOW PASS FILTERING AND BRIDGE FOR POWER /VSWR METERING AND ENCLOSURE.
Standards by which conformity has been established:
* ETSI EN 300489-11:2006 and -1:2008 (EMC 3.1a)
* ETSI EN 302018-2 (R&TTE 3.2)
* ETSI EN 300489-1:2008 Radiated Emissions
* ETSI EN 300489-1:2008 Conducted Emissions
* EN61000-4-6:1996 INJECTION CURRENT
* EN61000-4-3:2006 RF EM FIELD IMMUNITY
* EN61000-4-11:2004 DIPS AND INTERRUPTIONS
* Operating frequency : 87.50 to 108.00 MHz.
* Operating voltage :12V DC at 280 mA.
* Frequency control : by PLL microprocessor controlled.
* Rotary encoder for frequency change/select,suitable switch for data
* RF ourput level :200 mW (50R).
* PLL reference frequency : 8MHz high stability 1.5 ppm TCXO on board.
* Frequency drift from center: 500 Hz in 6 months.
* Parasitics level : -95dbc at 1 MHz min.distance from carrier.
* Preemphasis : 50uS(75uS to order).
* Total harmonics distortion : less than 0.1%.
* Audio frequency response : 30 Hz to 100 KHz , 0.1dB
* Signal to noise ratio : better than 65 dB
* Audio input sensitivity (mono) ; -30dB to +5dB continously adjustable.
* Operating frequency : -20 C to +50 C
* All entered info/data will be kept in memory after power off.
* Both subunits on high quality doublesided p/through boards,display pc board:123x77 mm, PLL board within shielding enclosure:131(L),99(W),32(H) mm.
* Graphics display ext.dimentions:77X70 mm,screen 63X47 mm.

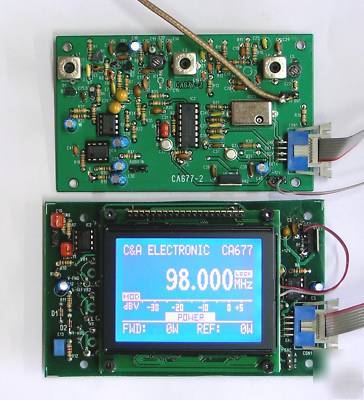

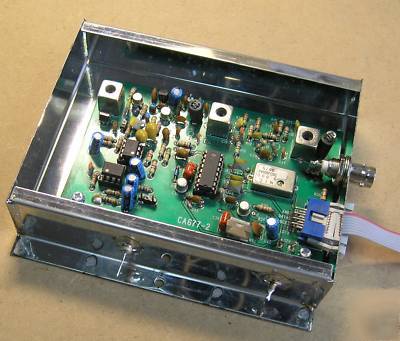

This unit comprises of two pc boards: one with the graphics display ,microprocessor and controls/amplifiers for audio and information(voltages)coming from suitable coupler for Power /V.S.W.R.The graphics display is a bright blue 128X64 display with on board driver(T6963C) of latest generation(-20 to +50 C) On top/middle appears the carrier frequency selected,below it there is a high resolution dot bar display ,where there is a continuous monitoring of mod.level +30 to -5 dBv.Bottom left appears the transmitted power in watts and bottom right the reflected power in watts.The next subunit comprises the frequency carrier unit.PLL IC used is the reputable MC145170 made by Motorola/Freescale.Reference frequency is derived from a high stability 1.5ppm TCXO. Both subunits are interconnected by a ribbon cable and can be instantly disconnected.For the PLL unit,there is a shielding enclosure and it was removed for clarity reasons(it is tested within it and purchased indeed).
