Caldwell (?) tank manager liquid sensor
Caldwell (?) Tank Manager Liquid Sensor

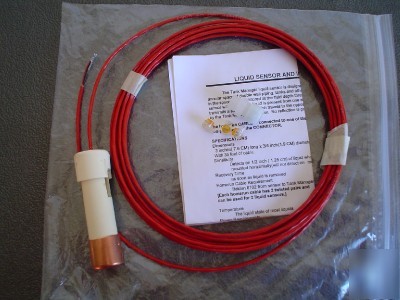

New Tank Manager Liquid Sensor.
There is no brand or model number that I can see on this but I believe that it is a Caldwell Liquid Sensor because it came with a Caldwell TMS2000 Tank Manager that I have listed and the Installation Specifications sheet says that this is a Tank Manager liquid Sensor.
"The Tank Manager liquid sensor is designed to detect the presence of liquids in containment sumps, annular space of double wall piping, tanks and other places that are supposed to be dry."
Dimensions: 3 inches (7.6 CM) long x 3/4 inch (1.9 CM) diameter with 35 feet of cable.
Sensitivity: Detects on 1/2 inch (1.25 CM) of liquid when mounted horizontally (will not detect on moisture).
Recovery Time: As soon as liquid is removed.
Homerun Cable Requirements: Belden 8102 from sensor to Tank Manager console up to 400 feet.
Temperature: The liquid state of most liquids.
Power Requirements: Driven by a low power ultrasonic signal.
