Dielectric rf coaxial dummy load resistor 1500 watt
Dielectric RF Coaxial Dummy Load Resistor 1500 watt
Use the links below to View More Images of the Dielectric Communication RF Coaxial Load Resistor / RF Terminator / Dummy Load

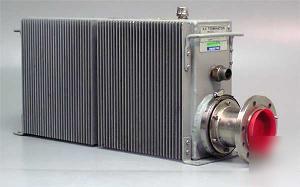

Dielectric 1500 watt RF Coaxial Load Resistor - front view
Dielectric 1500 watt RF Coaxial Load Resistor - front view - close up of connector
Dielectric 1500 watt RF Coaxial Load Resistor - back view
Dielectric Communication 1500 watt 50 ohm RF Coaxial Load Resistor / RF Terminator / Dummy Load
The 5750 Coaxial Load Resistor unit consists of a special ceramic tube with a
fired-on carbon film & a tapered exponential housing, immersed in a special
The cooling fluid transfer s heat from the resistor surface to the case & the fins
on the outside of the case transmits the heat to the surrounding air. The Exponential
tapered cone as been designed to provide excellent electrical characteristic over
the frequency range of DC to 1500 MHz (1.5 GHz ).
note all text and photos copyright 2008
