Leblond makino snc-106-A5 cnc vertical machining center

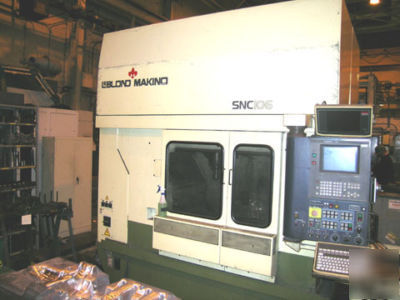

(1) USED - LEBLOND MAKINO MODEL SNC-106-A5 CNC VERTICAL HIGH SPEED GRAPHITE MACHINING CENTER*
Serial No. SNC-106-A5 New - 1996
Spindle Head Longitudinal - X-Axis 39.37" (1000 mm)
Spindle Head Lateral - Y-Axis 23.62" (600 mm)
Spindle Head Vertical - Z-Axis 15.75" (400 mm)
Distance from Spindle Gage Plane to Table Surface 11.8 ~ 27.5" (300-700 mm)

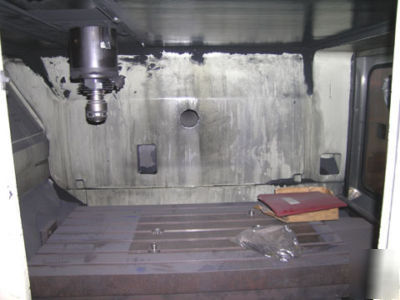

Table Loading Capacity - Maximum 2,205 Lbs. (1000 kg)

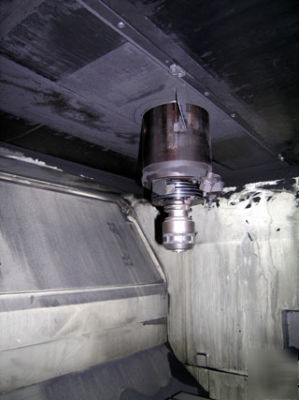

Spindle Speed (Air Cooled, Pressurized Spindle) 200 - 15,000 RPM
Spindle Taper Hole 7/24 Taper No. 40
Spindle Tool Power Clamp Disc Spring Clamp
Spindle Orientation Electric Servo Type
Spindle Drive Motor (AC) 2.9/5.0 HP
Floor Space Required 199" x 162"(5075 x 4145mm)
Approximate Machine Weight 16,500 Lbs. (7400 kg)
Type of Tool Shank 40T (JIS B6339)
Type of Retention Knob (Special) MAS P403T-1 (30 Deg.)
Tool Changer Time (ATC5 Tools, Tool to Tool) 15 s
Tool Diameter - Maximum 3.5" ( Dia. 90 mm)
Tool Length - Maximum 11.8" (300 mm)
Tool Weight - Maximum 17.6 Lbs. (8 kg)

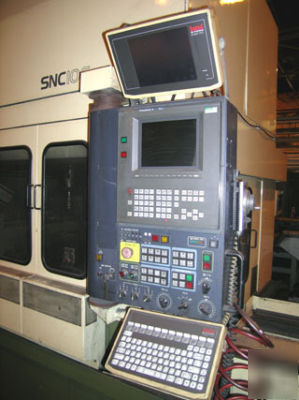

Makino Professional A, CNC Control
NC System, DLOG (D Net PC) System

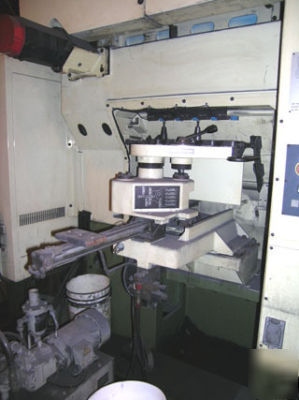

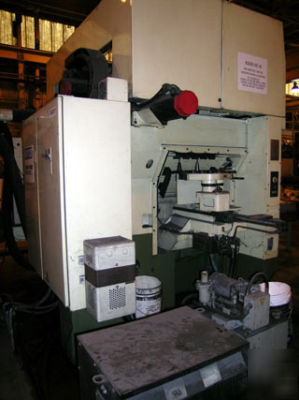

Table Load Unload, Manual Shuttle System

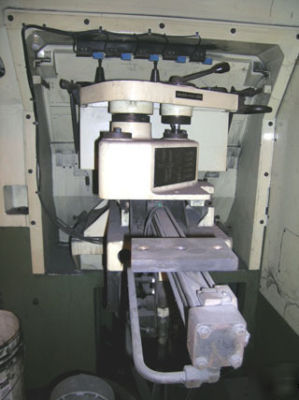

5-Position Automatic Tool Changer

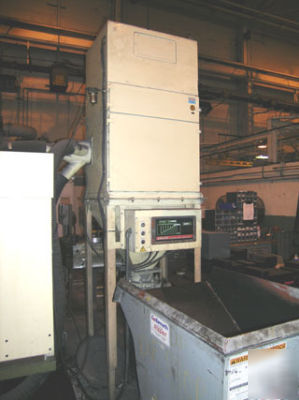

Amano Hi-Performance Dust Collection System
Air Flow Rate with a Max. of 14000 L/Min (at atmospheric pressure)
Filter is 2 pieces cartridge Type (Automatic Reverse Flushing)
Sealed Enclosure with Integrated Vacuum System
