New air compressor pressure switch w/one-port 1PC brand-

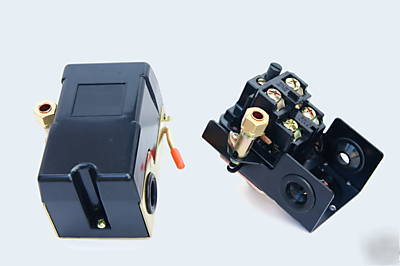

Air compressor pressure switch.Brand new,never used,high quality.
THIS SWITCH IS COMPARABLE TO A FURNAS , SQUARE D, AND MANY MORE. THIS SWITCH HAS AN UNLOADER AND A ON/OFF SWITCH. WILL WORK ON BOTH 2 STAGE AND SINGLE STAGE COMPRESSORS. IF YOUR COMPRESSOR DOES NOT NEED THE UNLOADER YOU DO NOT HAVE TO HOOK IT UP.
2.Connection:a manifold on the bottom of the switch,which is ONE-PORT with Female or Male 1/4 NPT BSP
3.Preset pressure settings:20-40PSI;30-50PSI;40-60PSI;50-80PSI;70-100PSI;80-115PSI;85-115PSI;90-140psi;95-125PSI; 110-140PSI;115-150PSI;135-175PSI.
( When you purchase,please leave a message to let us know which pressure preset you would like. )
4.There is an adjustment instruction inside cover of switch.
Rated Current/Voltage:20A/1PH 120V ; 17A/1PH 240V ; 9.6A/3PH 240V
Single Phase:115V 3/2HP ; 230V 2HP
DC:32V 1/4HP, 115V 1/4HP, 230V 1/4HP
5. If you are interested or have any questions,please feel free to leave a message here or directly send an email to our factory at ( ****@yahoo.com.cn ),we will respond to you within 2 days.
