> AD9411BSV-200 10-bit 200 msps 3.3V a/d converter AD9411

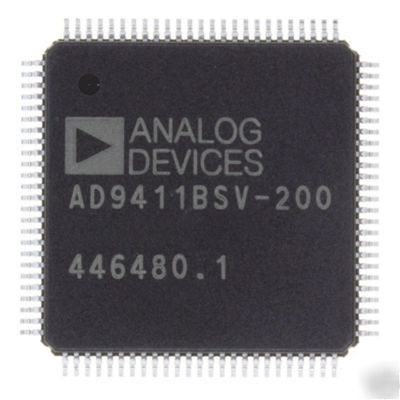

AD9411BSV-200 10-bit 200 msps 3.3V a/d converter AD9411
10-Bit 200 MSPS 3.3V A/D Converter IC
The AD9411 is a 10-bit monolithic sampling analog-to-digital converter optimized for high performance, low power, and ease of use. The product operates up to a 200 MSPS conversion rate and is optimized for outstanding dynamic performance in wideband carrier and broadband systems. All necessary functions, including track-and-hold (T/H) and reference, are included on the chip to provide a complete conversion solution.
The ADC requires a 3.3 V power supply and a differential sample clock for full performance operation. The digital outputs are LVDS compatible and support both twos complement and offset binary format. A data clock output is available to ease data capture.
Fabricated on an advanced BiCMOS process, the AD9411 is available in a 100-lead surface-mount plastic package (e-PAD TQFP-100) specified over the industrial temperature range ( 40 C to +85 C).
* SNR = 60 dB @ fIN up to 70 MHz @ 200 MSPS
* ENOB of 9.8 @ fIN up to 70 MHz @ 200 MSPS ( 0.5 dBFS)
* SFDR = 80 dBc @ fIN up to 70 MHz @ 200 MSPS ( 0.5 dBFS)
* 700 MHz full-power analog bandwidth
* On-chip reference and track-and-hold
* Power dissipation = 1.25 W typical @ 200 MSPS
* Clock duty cycle stabilizer
* Pin compatible to LVDS mode AD9430
