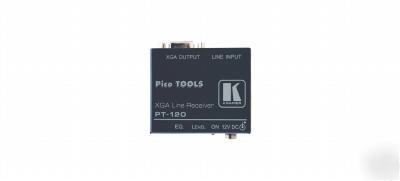

Kramer electronics pt-120 twisted pair to xga receiver
Manufacturer: Kramer Electronics Model/Part #: PT-120
The PT-120 is a twisted pair receiver for computer graphics video signals. It will convert a twisted pair signal from a PT-110 transmitter (or other compatible Kramer transmitter) to a computer graphics signal.
Paired transmitters: PT-110, TP-104, TP-105, TP-112HD, VP-12N, VP-12NHD, VP-200XLT, VP-23N, VP-23RC, VP-300T, VP-5T, VP-6A, TP-114, TP-210
* Bandwidth - 150MHz (-3dB)
* Power Connect System - Only one unit in a system, the transmitter or receiver, needs to be connected to a power source. All the system units must have the Power Connect system to use this feature.
* Level (Gain) & EQ (Peaking) Controls
* Horizontal & Vertical Polarity Selection
* Twisted Pair Input Connector - RJ-45.
* System Range - Up to 100 meters (320 ). Greater distances possible depending on signal resolution and cable.
* Cable - Uses UTP (unshielded twisted pair) cable such as CAT5.
