Mori seiki l-100V cnc vertical turning center lathe
MORI SEIKI L-100V CNC VERTICAL TURNING CENTER LATHE
Swing Over Bed: ............................................................... 14.10"
X-Axis Travel: ............................................................... 10.60"
Z-Axis Travel: ............................................................... 8.90"
Spindle Bore: ............................................................... 1.70"
Spindle Speeds: ............................................................... Up to 6000 RPM
Rapid Traverse Rates X & Z-............................................................... 315" / Min.
Diameter of Chuck ............................................................... 6.00"
Maximum Turning Diameter: ............................................................... 3.93"
Maximum Longitudinal Travel: ............................................................... 8.86"
Maximum Cross Travel: ............................................................... 10.62"
Turret/Tool Positions: ............................................................... 4 Stations x 4 = 16 Tools
Main Motor: ............................................................... 10 HP 3/60
Overall Dimensions (Approx.): ............................................................... 46" x 44" x 88" H
Weight (Est.): ............................................................... 7100 Lbs.

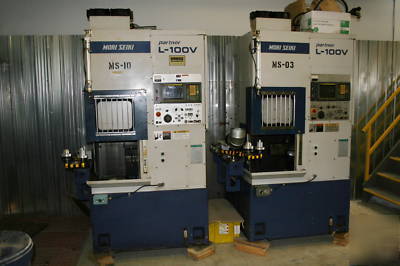

2 MACHINES AVAILABLE. PRICE IS FOR ONE MACHINE ONLY
MACHINES ARE IN EXCELLENT CONDITION!!
