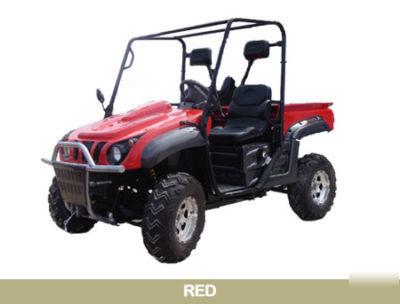

Tns 650CC utv farm vehicle
TNS 650 (UTV) Utility Terrain Vehicle Specification sheet
1. 2wd/4wd -Switchable two wheel drive to 4 wheel drive on all models.
2. Hood- Front opening access hood to allow easy maintenance to brake system, steering,suspension and electrics
3. Engine- Integral 650cc water cooled 4 stroke engine with full access for maintenance under the tipper tray.
4. Instruments - Digital instrument panel showing speed in Km/h and Mp/h, fuel level, temperature gauge, rev counter (rpm), total distance covered in miles & kilometers and in hours run time, oil warning light, high beam, left and right indicator lights. Each model also comes complete with winch control switch and tipper control switch, Fm radio with mp3 player with dash mounted remote switching.
5. Protection frame- Large diameter tubular roll over protection frame, combined with 3 point retractable seat belts and high back seats with head protectors, to provide both the driver and passenger with a safety protection zone in the event of an accident.
6. Tipper - Rear load carrying tray with electric tipper operated from the dash board controls, the tray has a fold down reardoor with double latching for load security and a tipping capacity of 350kg.
7. Front bars - Standard front bars with hi visibility spot light switched from the dash controls, a 3000lb (3 tonne) winch system with dash mounted control. Rear winch fitment is an easy add on extra.
8. Differential Locks - The Tns UTV uses a system of three separate differential locks, the front and rear auto diff locks as shown have an automatic locking system that will engage when any one wheel rotates at a speed greater than 30km/h, the central diff lock is in a permanently locked position. Therefore with the three diff combination the Tns UTV has true 4wd when selected unlike many other UTV's on the market.
9. Disc brakes - Disc brakes are fitted all round to give you the stopping power on all terrain.
10. Alloy wheels - All models come with alloy wheels as standard as well as off road tyres.
11. Suspension - Heavy duty fully independent suspension, double arm rear. Front shock absorber with reservior
12. Chassis - Double layer heavy section chassis.
manual or full automatic gearbox
shaft drive to full automatic differentials front and rear with 2 or 4 wheel engagement
Front shock absorber with reservior
Full lights, indicators, spot lights
with tipping capacity of 350kg, fold down
hinged tail gate and double latching.
3000lb remote-operated - rear winch can be added as an option.
Electric operated from dash controls
lockable dash mounted glove compartment, hinged tool tray, to allow access to battery compartment
