Anritsu site master S331B cable antenna sitemaster S331

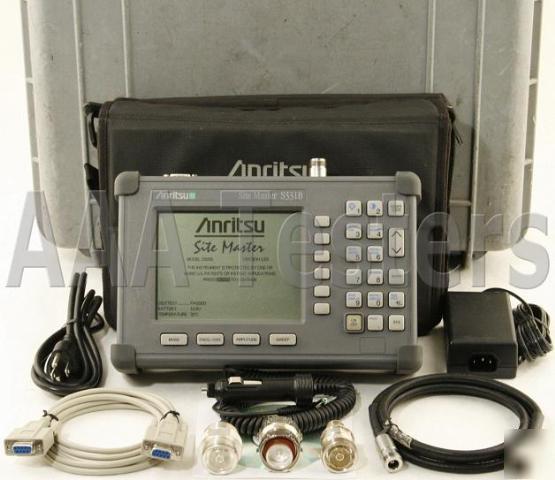

* Anritsu SiteMaster S331B Cable & Antenna Analyzer
* Anritsu N Male - N Female Armored Core Cable
* 7/16 DIN Female - 7/16 DIN Female Connector
* 7/16 DIN Male - 7/16 DIN Male Connector
* N Female - 7/16 DIN Female Connector
* SiteMaster Software Tools on CD-ROM
* RS-232 PC Interface Download Cable
* Soft Carrying Case For Unit
Anritsu SITE MASTER S331B Cable & Antenna Analyzer 25 Mhz to 3.3 Ghz Frequency Range
Ideal for today's cellular and microwave systems!
Includes Carrying Case & Full Accessories!
The S331B, with frequency coverage of 25 MHz to 3300 MHz, is ideally suited for users who work in VHF, broadcasting, paging, cellular, PCS/GSM and ISM and WLL frequency bands. Both S331B and S332B can replace the S300A and the S331A Site Master models. The newly improved user interface, large VGA display, real time clock, alphanumeric trace naming, field replaceable battery and up to 517 data points and 200 trace storage make these two Site Master models ideally suited for any experience level user in commissioning and maintenance of today's wireless systems infrastructures. The S331B performs precision return loss/SWR, cable loss and distance-to-fault measurements in the presence of RF interference. An optional power monitoring is available to make power measurement quickly and easily.
* Extended memory capacity to 200 memory locations
* Large VGA Display (640X480)
* Display Resolution Settings can be adjusted to 130, 259 and 517 data points
* Field Replaceable Battery- No tools required
* 24 customized downloadable cable parameters
* Reverse, over-voltage and under-voltage protection
The Site Master S331B is a hand held SWR/RL (standing wave ratio/return loss), and Distance-To- Fault (DTF) measurement instrument that includes a built-in synthesized signal source. All models include a keypad to enter data and a liquid crystal display (LCD) to provide graphic indications of SWR or RL over the selected frequency range and selected distance. The Site Master is capable of up to 2.5 hours of continuous operation from a fully charged field-replaceable battery and can be operated from a 12.5 dc source. Built-in energy conservation features can be used to extend battery life over an eight-hour work day.
* Range: 80.0 to +80 dBm or 10.0 pW to 100.0 kW
* Offset Range: 0 to +60.0 dB
* Resolution: 0.1 dB or 0.1 xW
* Trace Memory: 200 maximum
* Weight: 1.82 kg (4.0 pounds)
