Arcom control system apci-IB40 pc interface pci bus
SEE SPECIFICATIONS COLLECTED FROM INTERNET MANUFACTURER WEBSITE, MANUFACTURER ALSO OFFERING SOFTWARE/DRIVER DOWNLOAD
40 buffered, bi-directional digital I/O lines; disabled or preset on power-up
Open-collector outputs, sink 24mA
1MHz clock; three 8254 counter-timers
As outputs - Max. sink current: 24mA
As inputs - Max. input voltage: TTL-compatible 5V DC
Power-up states (group of 8 lines) High/Low/ Floating
Interrupt generation Timer: 0 (500kHz to 6.5sec)
PCIbus interface: 32-bit (+5V)
Operating temperature: 0 to +70 C
Storage temperature: -40 to +125 C

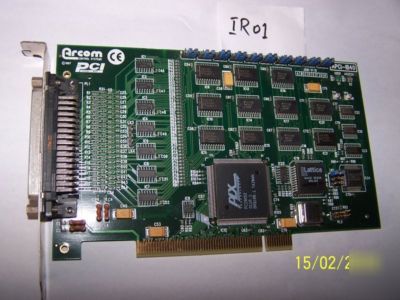

No Driver CD or Disk / No Interface Cable / No Original Packing / Only card as seen in picture and described above
