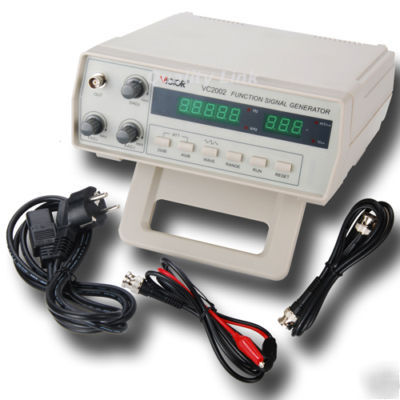

Digital Function Signal Generator 5 digits 0.2Hz-2MHz
Brief Description: The Function Generator is an accurate instrument which can produce function wave-form such as sine wave, Square wave, Rectangle wave, Sawtooth Wave and Triangle wave. And the frequency and amplitude can be adjusted continuously. This is an ideal equipment for engineers, electric laboratory, production lines and teaching purposes. Features:
* It's convenient to operate and use with high intelligence for using the single microprocessor to control running and displaying.
* Large scale single integrated accuracy function generator leads to super performance.
* Designed by large scale integrated circuit to insure the high reliability and high stability.
* High Precision with frequency range 0.2 Hz to 2 MHz
* Output signal wave-form: Sine wave, Square wave, Rectangle wave, Sawtooth wave and Triangle wave
Seven Frequency range between 0.2 Hz and 2 MHz:a. 0.2 Hz - 2 Hzb. 2 Hz - 20 Hzc. 20 Hz - 200 Hzd.200 Hz - 2 kHze. 2 kHz - 20 kHzf. 20 kHz - 200 kHzg. 200 kHz - 2 MHz
* Output signal impedance: 50
Sine wave, Square wave, Rectangle wave, Sawtooth wave and Triangle wave
Non-attenuate (2 Vp-p ~ 20 Vp-p) 20% continuously adjustableAttenuate 20dB (0.2 Vp-p ~ 2.0 Vp-p) 20% continuously adjustableAttenuate 40dB (20 mVp-p ~ 200 mVp-p) 20% continuously adjustableThe above are measured with load 1 M ,the output signal amplitude will be half of standard at 50 load.
* Function output symmetry adjust scope: 20% ~ 80% ( 10%)
a. Sine wave distortion: <2%b. Triangle wave linear: >99% (10%-90% of output amplitude)c. Square wave rise edge times: less than 100 nS (10%-90% of output amplitude)d. Square wave fall edge times: less than 100 nS (10%-90% of output amplitude)e. Square wave rise and fall pulse less than or equal to 5% Vo (50 load).f. Test condition: frequency output: 10 KHz, amplitude: 5 Vp-p, warm-up for 20 minutes.
* Output signal frequency stability: less than 0.1%/min (test condition is the same as the above)
* Amplitude display (only for 50 load, at 1 M load, the real output amplitude is double of the displaying value):
a. Display digits: 2/3 digits (decimal point automatic select place).b. Display units: Vp-p or mVp-p.c. Display errors: Vo 10% 1d (Vo refers to the true value of output signal)d. Resolution: non-attenuate 0.2 Vp-p20dB attenuate: 20 mVp-p40dB attenuate: 2 mVp-p
a. display range: 0.2Hz 2 MHzb. display effective digit: 4 or 5 digits.
* Time base: frequency: 12 MHz, frequency stability: 5 x 10-5
* Working temperature: 0 C~ 40 C (32 F ~ 104 F)
* Power applicability: 110V/220V 10% 50Hz/60Hz 5%,
* Size: approx. 270 (L) x 215 (W) x 100 (H) mm (10.63 x 8.46 x 3.94 inch)
* 1 x Function Signal Generator
