Dsp portable radio kchibo D95L fm.mw.sw/shortwave +gift
Can insert stents, both easy to use, but also beautiful
Soft leather bags, even if you travel, you can carry.
Outdoor antenna, professional intercept high-frequency signal, effectively improve the sensitivity and clarity.
The project configuration 2 pcs high-capacity lithium-ion rechargeable battery, long life.

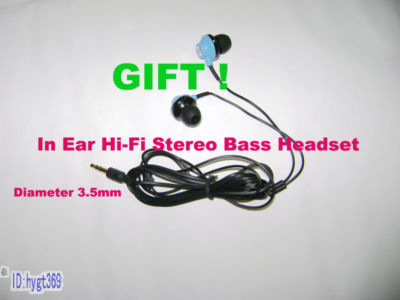

Gifts :In addition to this project Original headset, another re-gift: in ear mode Hi-Fi stereo bass headset. Sounds simple and honest, separate high and low distortion, is that you enjoy the disco dance songs of the best products. Plug diameter of 3.5mm.
Frequency Response: 20Hz-20KHz
The direct supply of goods by the manufacturer, please look for the brand: Kchibo , Beware of fake!
* Use of digital filter design, with high-performance radio selective mirror and anti-interference ability.
* Dual 16Bit DAC with low distortion audio output.
* The use of large-scale multi-stage AGC circuit of strong signal interference suppression better.
* 1dB resolution of the high-frequency signal to noise ratio display and an antenna input signal strength indicator.
* Built-in high-speed MCU circuit (in the role of AGC AFC IIC PGA VOLCRT .......)
* AM-band circuit design of automatic tuning.
* The use of high-definition liquid crystal display, the work of the state at a glance.
* Receive FM (campus radio), medium wave and short-wave band program.
* The use of U.S. special software radio digital signal processing chip, better performance, receiving a stable and reliable, there is no frequency drift.
* The way with three kinds of selection:
* Computer memory 90 radio pre-selection
* Scan memory function, in order to scan automatically at the same time to preserve the radio frequency.
* Digital clock and automatic shutdown 10-90 minute sleep function.
* Regular boot function to facilitate or to listen to radio programs from time to time as the alarm clock to use.
* Built-in electronic volume control 40 circuits, while built-in memory will automatically store your volume settings.
* Calendar, to facilitate your understanding of real-time information on date and week.
* Face-controlled switch lock button to prevent misoperation.
* With the delivery of soft external antenna, in the FM and shortwave radio receiver, use an external antenna to improve reception.
* FM stereo, and distribution of quality hi-fi stereo headphones, a more beautiful sound appealing, there are sound effects.
* The use of rechargeable lithium-ion batteries or external power supply, save money, and environmental protection.
Frequency Modulation (FM) 64-108 Mhz
Medium-wave (MW) 522-1710 Khz (9KHz step)
Short-wave (SW) 2.30-21.85 MHz
2. The number of radio frequency memory (a total of 90)
FM (frequency modulation) 30 GE
FM signal to noise ratio: >50dB
MW signal to noise ratio: >45dB
SW signal to noise ratio: >45dB
5. Alone is better than 40dB signal to choose performance
6. Power DC 5 V (Configure the adapter specifications for your country)

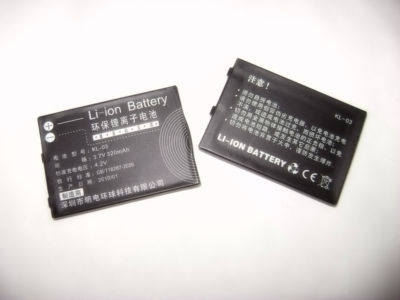

Batteries containing lithium batteries (3.7V/320mAh) 5 V 300mA external power supply
7. The largest current consumption less than 200mA
9. Machine speaker 40mm / 12 /1W
10. 3.5mm 32 external hi-fi headphone
11. Dimensions 100 x 55 x 15mm
12. Fuselage weight 70g (without batteries)
13.Match the device power supply: 220V

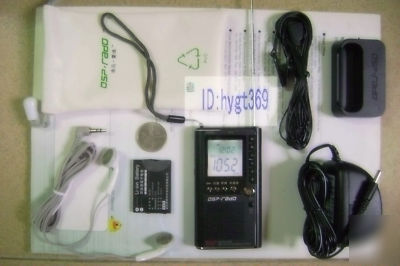

Configurations: the two power companies charge, hand band, headphones, soft antenna.
