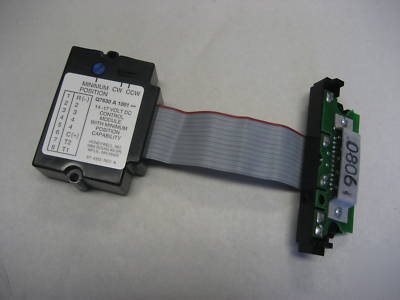

Honeywell Q7630A1001 interface module modutrol iv motor
Q7630A Interface Module Modutrol IV Motor
For converting series 90 Modutrol IV motors to series 70 (electronic) control.
Mounts and works inside wiring box of any series 90 Modutrol IV Motor.
Protected from weather by motor's NEMA 3 wiring box.
Mates to motor's quick-connect terminals and provides screw terminals for control wiring connections.
Features solid-state circuitry with surface mount components.
Includes (except Q7330A) reversing switch to allow replacement of electrically normally open or electrically normally closed motors.
Interface Module, Modutrol IV Motor
Provides 3-wire 14 to 17 Vdc control with a minimum position capability. Adapts M91XX to function as M76XX model.
Mounts to quick-connects inside Mod Motor
Fits inside wiring junction box of Modutrol IV Motor
Series 90 for conversion to Series 70
