Hydraulic 3 port flow control excess to tank 3/8" bsp
Hydraulic 3 Port Flow Control Excess To Tank 3/8" bsp

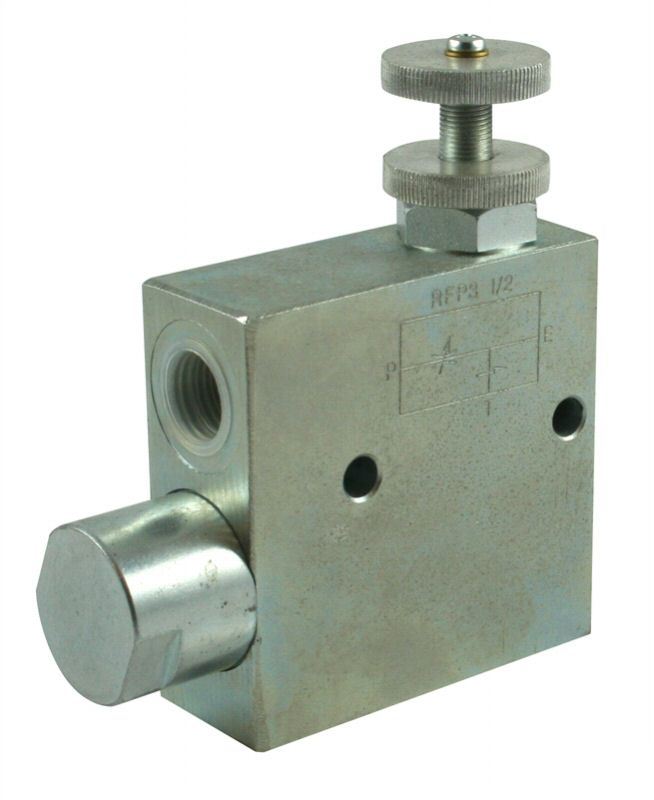

3/8" 3 PORT FLOW CONTROL VALVE WITH EXCESS BACK TO TANK - V1110
This valve enables to keep "P" flow constant to a certain setting, independently of the required pressure or the inlet flow of the valve. Exceeded flow is drained in "T" (tank).
* Max adjusted flow 30 l/min
Applications: Connect E to the pressure and P to the line where flow adjustment is needed. Connect T to the tank. To adjust inlet pressure in P screw in or out, hand wheel, after loosening the locknut
