New - bodine .05HP type NS1-34RJ gearmotor Z0713010

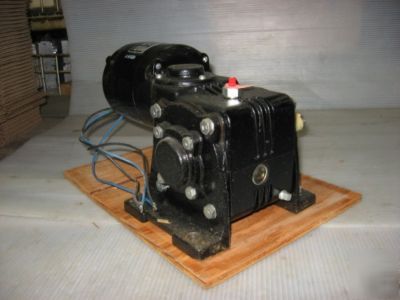

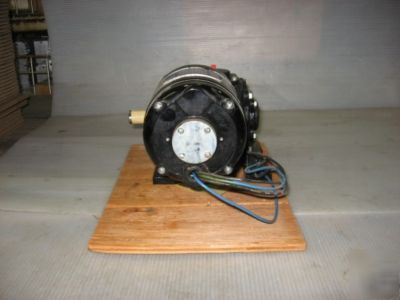

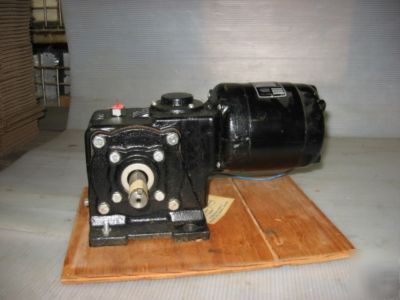

NEW - Bodine .05HP Type NS1-34RJ Gearmotor Z0713010
* Manufacturer Part Number: Z0713010

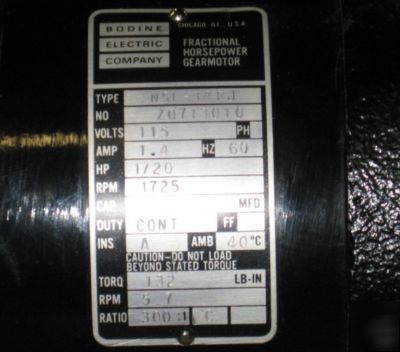

* Marked on Tag: Type NS1-34RJ; No. Z0713010; Volts 115; PH 1; Hz 60; HP 1/20; RPM 1725; Duty Cont.; Ins. A; AMB 40 C; Caution Do Not Load Beyond Stated Torq: Torq. 132 LB-IN; RPM 5.7 Ratio 300:1
* Oil Level sight glass on front
* Overall Dimensions: 8 x 11 x 6
* Shaft: 2 long, .754 diameter
* Mounting holes: Four, , 3 apart end to end, 5 side to side
