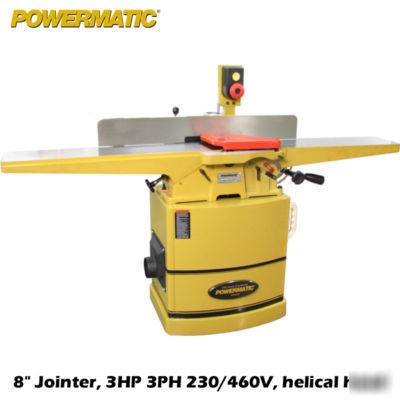

Powermatic 8" jointer, 3HP 3PH 230/460V, helical head
3HP 3PH 230/460V, helical head
Stock Number: 1610087K / Model Number: 60HH
With a list price of over $2,740 this discounted price will save you thousands!!!
This 8-inch jointer meets the demand for accuracy while combining unique, user-friendly functions. The infeed table lever can be used to rapidly position table height, then the handle rotated for fine-adjustment of cut depth. Fence tilting is accomplished by a worm gear system, smoothly operated by a simple handwheel. The tables provide 73 long extended support. A non-mar insert in the fence protects the table from scratches during adjustments. The jointer is available with a three knife cutterhead, or a helical cutterhead with four-sided knife inserts. The operating switch is high mounted for easy reach, and the push blocks have a magnetic base - store them on any metallic surface for instant access.
* Helical cutterhead with four-sided inserts provides smoother, quieter cutting and a superior finish
* Extra long tables are mounted on dovetailed ways, for extended workpiece support
* Adjustment lever offers quick infeed table positioning and fine-tuning of cut depth
* High mount switch for operator convenience
* Handwheel operated worm gear system for smooth fence tilting
* Magnetic push blocks can be stored on the machine within constant reach
* Non-mar fence insert protects table surface
* Cutting Capacity (W x D) 8 x 1/2 "
* Cutterhead Speed 7000 RPM
* Number of Knives (Helical/Standard) 54 four-sided inserts
* Standard Knife Size (L x W x T) 0.59 x 0.59 x 0.10 "
* Table Height 32 "
* Table Size (L x W) 73 x 8 1/2 "
* Infeed Table Length 35 "
* Outfeed Table Length 35 "
* Fence Size (L x H) 38 x 4 3/4 "
* Fence Tilts 45 forward, 45 backward
* Fence Positive Stops 45 forward, 45 and 90 backward
* Dust Port Outside Diameter 4 "
* Motor Power 3 HP
* Motor Phase 3 Ph
* Motor Voltage 230 / 460 V
* Prewired Voltage 230 V
* Height 46 inch
* Width 73 inch
* Length 25 inch
* Net Weight 490 pounds
