Sharp model 1118H toolroom lathe w/ dig var speed

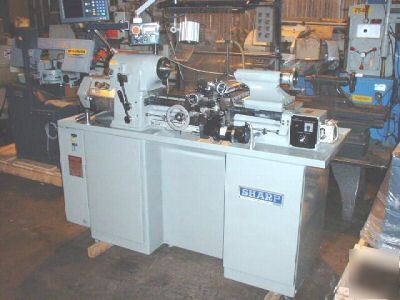

q One (1) Each SHARP Model 1118H Toolroom Lathe w/ Digital Variable Speed
High Speed Spindle (Infinitely Variable 130-4,000 RPM)
Accuracy Within 50 Millionths TIR
Independent Electric Feed Control On Carriage And Cross Slide
Quick Change Inch/Metric Gearbox With (36) Changes
Double Angular Contact Bearings Support Spindle
Quick-Action Compound Slide For Threading
Hardened And Ground Bed Ways
Turcite Coating On Carriage And Bed
Adjustable Thread Length Control Stops With Fine Adjustment
Hardened And Ground Lead Screws
5C Collet Closer and Collet Holder
Distance Between Centers 18
With Round 5C Collets 1-1/6
With Hexagon 5C Collets 7/8
With Step Chucks 1-1/6 - 6
Spindle Speed Range (Digital Variable Speed) 130 - 4000 RPM
Spindle Nose Taper (Inside) 5C (10 )
Spindle Nose Taper (Outside) 4
Quick-Action Compound Slide Travel 0.1
Carriage Power Feed Range 5/16 x 7
Cross Slide Power Feed Range 5/16 x 4
Leadscrew Pitch, Diameter 8 TPI, 1
Metric Threads [36] 0.275 - 2.7
Tailstock Spindle Diameter 1.358
Tailstock Spindle Taper MT#2
Tailstock Spindle Travel 3.75
Main Motor (220V, 3Ph, 60Hz) 5Hp, 2-Speeds
Coolant Pump Motor (220V, 3Ph, 60Hz) 0.25Hp
Feed Motor (DC) 75 Watt, 110 Volt
Weight (Approximate) 2300 lbs.
